Q-0J00J0003084i

Active

Amphenol Custom Cable

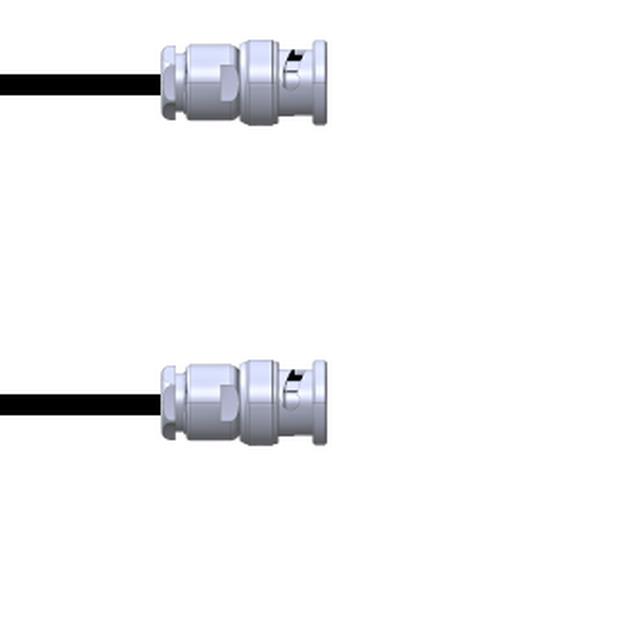

CBL ASSY BNC PLUG TO PLUG 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J00J0003084i

Active

Amphenol Custom Cable

CBL ASSY BNC PLUG TO PLUG 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J00J0003084i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	BNC to BNC

Q-0J00J0 Series

Part	Frequency - Max [Max]	Features	Length	Length	Style	2nd Connector Mounting Type	Color	Overall Impedance	1st Contact Gender	2nd Contact Gender	1st Connector Mounting Type	Cable Type	1st Connector	2nd Connector	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0J00J00050.5M	4 GHz	Shielded	50 cm	19.69 "	BNC to BNC	Free Hanging (In-Line)	Copper	50 Ohms	Male	Male	Free Hanging (In-Line)	RG-316	BNC Plug	BNC Plug
Amphenol Custom Cable Q-0J00J00032.5M	4 GHz	Shielded	2.5 m	98.4 in	BNC to BNC	Free Hanging (In-Line)	Black	50 Ohms	Male	Male	Free Hanging (In-Line)	RG-174	BNC Plug	BNC Plug	8.2 '
Amphenol Custom Cable Q-0J00J0003.75M	4 GHz	Shielded	750 mm	29.53 "	BNC to BNC	Free Hanging (In-Line)	Black	50 Ohms	Male	Male	Free Hanging (In-Line)	RG-174	BNC Plug	BNC Plug
Amphenol Custom Cable Q-0J00J0003001M	4 GHz	Shielded	1 m	39.4 in	BNC to BNC	Free Hanging (In-Line)	Black	50 Ohms	Male	Male	Free Hanging (In-Line)	RG-174	BNC Plug	BNC Plug	3.3 ft
Amphenol Custom Cable Q-0J00J0003.25M	4 GHz	Shielded			BNC to BNC	Free Hanging (In-Line)	Black	50 Ohms	Male	Male	Free Hanging (In-Line)	RG-174	BNC Plug	BNC Plug		9.843 "	250 mm
Amphenol Custom Cable Q-0J00J0003006i	4 GHz	Shielded	152.4 mm	6 in	BNC to BNC	Free Hanging (In-Line)	Black	50 Ohms	Male	Male	Free Hanging (In-Line)	RG-174	BNC Plug	BNC Plug
Amphenol Custom Cable Q-0J00J0003060i	4 GHz	Shielded	1.5 m	5 '	BNC to BNC	Free Hanging (In-Line)	Black	50 Ohms	Male	Male	Free Hanging (In-Line)	RG-174	BNC Plug	BNC Plug	5 ft
Amphenol Custom Cable Q-0J00J0005006i	4 GHz	Shielded	152.4 mm	6 in	BNC to BNC	Free Hanging (In-Line)	Copper	50 Ohms	Male	Male	Free Hanging (In-Line)	RG-316	BNC Plug	BNC Plug
Amphenol Custom Cable Q-0J00J0003084i	4 GHz	Shielded	2.1 m	84 in	BNC to BNC	Free Hanging (In-Line)	Black	50 Ohms	Male	Male	Free Hanging (In-Line)	RG-174	BNC Plug	BNC Plug	7 ft
Amphenol Custom Cable Q-0J00J00031.5M	4 GHz	Shielded	1.5 m	59.1 in	BNC to BNC	Free Hanging (In-Line)	Black	50 Ohms	Male	Male	Free Hanging (In-Line)	RG-174	BNC Plug	BNC Plug	4.9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 90.94
		25	$ 89.17
		50	$ 87.40
		100	$ 85.63
		250	$ 83.86

Description

General part information

Q-0J00J0 Series

Cable Assembly Coaxial BNC to BNC RG-174 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
