A8504938S15A

Active

AMPHENOL PCD

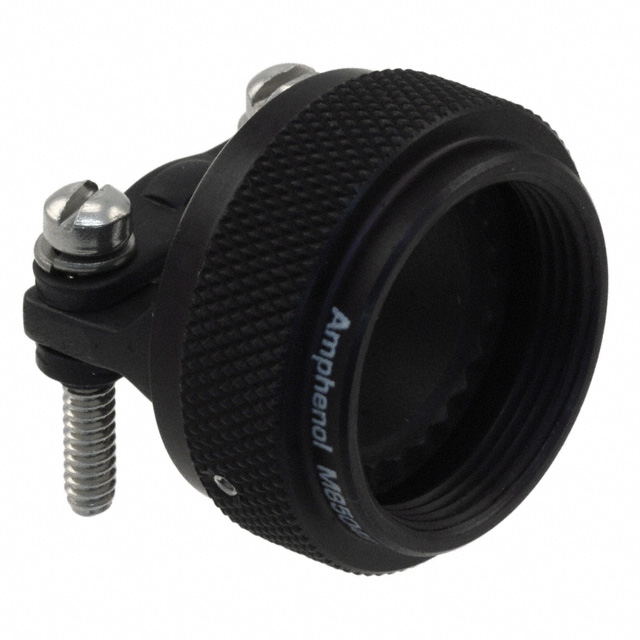

CONN CABLE CLAMP SZ15 BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A8504938S15A

Active

AMPHENOL PCD

CONN CABLE CLAMP SZ15 BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A8504938S15A

Cable Exit	180 °
Color	Black
Diameter - Outside [diameter]	1.28 in
Diameter - Outside [diameter]	32.51 mm
Features	Clamp Screws, Self-Locking
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy
Plating	Anodized
Shell Size - Insert	15
Type	Cable Clamp

M85049 Series

Part	Color	For Use With/Related Products	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Shell Size - Insert	Material	Features	Cable Exit	Plating	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shielding	Primary Material	Ingress Protection	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Min]	Cable Opening [Min] [diameter]	Cable Opening [Max]	Cable Opening [Max] [diameter]	Thread Size	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
AMPHENOL PCD A8504939S19A	Black	MIL-DTL-38999 Series III IV	16 mm	8.38 mm	0.63 in	0.33 in	19	Aluminum Alloy	Clamp Screws Self-Locking	90 °	Anodized	Cable Clamp	38.61 mm	1.52 in
AMPHENOL PCD A850491039W	Olive Drab	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	16 mm	8.89 mm	0.63 in	0.35 in	22	Aluminum Alloy	Clamp Screws	180 °	Cadmium	Backshell Cable Clamp	37.34 mm	1.47 "	Shielded	Metal	Environment Resistant
AMPHENOL PCD A850498412W03	Olive Drab	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III					7 12	Aluminum Alloy		90 °	Cadmium	Backshell Banding	28.96 mm	1.14 "	Unshielded	Metal		11.43 mm	0.45 in
AMPHENOL PCD A8504939S19N	Silver	MIL-DTL-38999 Series III IV	16 mm	8.38 mm	0.63 in	0.33 in	19	Aluminum Alloy	Clamp Screws Self-Locking	90 °	Electroless Nickel	Cable Clamp	38.61 mm	1.52 in
AMPHENOL PCD A8504938S15A	Black	MIL-DTL-38999 Series III IV					15	Aluminum Alloy	Clamp Screws Self-Locking	180 °	Anodized	Cable Clamp	32.51 mm	1.28 in
AMPHENOL PCD A8504939S11A	Black	MIL-DTL-38999 Series III IV	5.84 mm	3.81 mm	0.23 in	0.15 in	11	Aluminum Alloy	Clamp Screws Self-Locking	90 °	Anodized	Cable Clamp	24.9 mm	0.98 in
AMPHENOL PCD A850493913A	Black	MIL-DTL-38999 Series III IV					13	Aluminum Alloy	Clamp Screws	90 °	Anodized	Cable Clamp	29.46 mm	1.16 in						4.83 mm	0.19 in	8.38 mm	0.33 in
AMPHENOL PCD A8504951124W	Olive	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III					24	Aluminum Alloy	Clamp Screws	90 °	Cadmium Nickel	Cable Clamp	40.39 mm	1.59 in										1 7/16-18 UNEF	18.03 mm	0.71 in 1.08 in	27.43 mm
AMPHENOL PCD A8504938S17A	Black	MIL-DTL-38999 Series III IV					17	Aluminum Alloy	Clamp Screws Self-Locking	180 °	Anodized	Cable Clamp	35.81 mm	1.41 in											7.11 mm 15.49 mm	0.28 in 0.61 in
AMPHENOL PCD A8504952S40W	Olive	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III					40	Aluminum Alloy	Clamp Screws Self-Locking	180 °	Cadmium Nickel	Cable Clamp	73.41 mm	2.89 in							0.94 in		1.5 in	2 1/2-16 UN				23.88 mm	38.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.27
		10	$ 18.07
		25	$ 16.94
		50	$ 16.13
		100	$ 15.36
		250	$ 14.40
		500	$ 13.72

Description

General part information

M85049 Series

Black Connector Cable Clamp 15
