3601/34 100

Active

3M (TC)

CBL RIBN 34COND 0.05 BLUE FEET

Deep-Dive with AI

Search across all available documentation for this part.

Documentscable Mating Guide Datasheet

3601/34 100

Active

3M (TC)

CBL RIBN 34COND 0.05 BLUE FEET

Deep-Dive with AI

Documentscable Mating Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3601/34 100

Cable Type	Flat Cable
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Blue
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Blue
Length	15.24 m, 304.8 mm
Length	50 ft, 1 ft
Length	Enter Number of Feet in Order Quantity
Length [x]	3.05 m, 30.48 m
Length [x]	10 ft, 100 ft
Number of Conductors	34
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 20424
Ribbon Thickness	0.74 mm
Ribbon Thickness	0.029 in
Ribbon Width [y]	1.7 in
Ribbon Width [y]	43.18 mm
Shielding	Unshielded
Spool Size	30.48 m
Spool Size	100 ft
Voltage	300 V
Wire Gauge	28 AWG

3601 Series

Part	Cable Type	Insulation Resistance	Ribbon Thickness	Ribbon Thickness	First Conductor Mark	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Conductors	Ratings	Length	Length	Shielding	Jacket (Insulation) Material	Ribbon Width	Ribbon Width	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Conductor Material	Wire Gauge	Ribbon Width [custom]	Ribbon Width [custom]	Length	Spool Size	Spool Size	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]	Features	Ribbon Width [x]	Ribbon Width [x]
3M (TC) 3601/60 100	Flat Cable	10 GOhm	0.74 mm	0.029 in	Blue	300 V	-55 °C	200 °C	0.05 in	1.27 mm	60	UL Style 20424	7.62 m 15.24 m 304.8 mm	1 ft 25 ft 50 ft	Unshielded	Fluorinated Ethylene-Propylene (FEP)	76.2 mm	3 in	Blue	7	36 AWG	3.05 m	10 ft	Copper Silver Coated	28 AWG
3M (TC) 3601/10 100	Flat Cable	10 GOhm	0.74 mm	0.029 in	Blue	300 V	-55 °C	200 °C	0.05 in	1.27 mm	10	UL Style 20424	7.62 m 304.8 mm	1 ft 25 ft	Unshielded	Fluorinated Ethylene-Propylene (FEP)			Blue	7	36 AWG			Copper Silver Coated	28 AWG	0.5 "	12.7 mm	Enter Number of Feet in Order Quantity	30.48 m	100 ft
3M (TC) 3601/20 100	Flat Cable	10 GOhm	0.74 mm	0.029 in	Blue	300 V	-55 °C	200 °C	0.05 in	1.27 mm	20	UL Style 20424	304.8 mm	1 ft	Unshielded	Fluorinated Ethylene-Propylene (FEP)	1 in		Blue	7	36 AWG	3.05 m	10 ft	Copper Silver Coated	28 AWG						25.4 mm
3M (TC) 3601/34 100	Flat Cable	10 GOhm	0.74 mm	0.029 in	Blue	300 V	-55 °C	200 °C	0.05 in	1.27 mm	34	UL Style 20424	15.24 m 304.8 mm	1 ft 50 ft	Unshielded	Fluorinated Ethylene-Propylene (FEP)			Blue	7	36 AWG	3.05 m 30.48 m	10 ft 100 ft	Copper Silver Coated	28 AWG			Enter Number of Feet in Order Quantity	30.48 m	100 ft		1.7 in	43.18 mm
3M (TC) 3601/08 100	Flat Cable	10 GOhm	0.74 mm	0.029 in	Blue	300 V	-55 °C	200 °C	0.05 in	1.27 mm	8	UL Style 20424			Unshielded	Fluorinated Ethylene-Propylene (FEP)			Blue	7	36 AWG	30.48 m	100 ft	Copper Silver Coated	28 AWG
3M (TC) 3601/10	Flat Cable	10 GOhm	0.74 mm	0.029 in	Blue	300 V	-55 °C	200 °C	0.05 in	1.27 mm	10				Unshielded	Poly-Vinyl Chloride (PVC)			Blue	7	36 AWG			Copper Silver Coated	28 AWG	0.5 "	12.7 mm
3M (TC) 3601/15 100	Flat Cable	10 GOhm	0.74 mm	0.029 in	Blue	300 V	-55 °C	200 °C	0.05 in	1.27 mm	15	UL Style 20424	7.62 m 15.24 m	25 ft 50 ft	Unshielded	Fluorinated Ethylene-Propylene (FEP)	19.05 mm	0.75 "	Blue	7	36 AWG	3.05 m 30.48 m	10 ft 100 ft	Copper Silver Coated	28 AWG
3M (TC) 3601/16SF	Flat Cable	10 GOhm	0.74 mm	0.029 in	Blue	300 V	-55 °C	200 °C	0.05 in	1.27 mm	16	UL Style 20424			Unshielded	Fluorinated Ethylene-Propylene (FEP)			Blue	7	36 AWG	30.48 m	100 ft	Copper Silver Coated	28 AWG							0.8 in	20.32 mm	Splice Free
3M (TC) 3601/06	Flat Cable	10 GOhm	0.74 mm	0.029 in	Blue	300 V	-55 °C	200 °C	0.05 in	1.27 mm	6	UL Style 20424			Unshielded	Fluorinated Ethylene-Propylene (FEP)			Blue	7	36 AWG	30.48 m	100 ft	Copper Silver Coated	28 AWG
3M (TC) 3601/14	Flat Cable	10 GOhm	0.74 mm	0.029 in	Blue	300 V	-55 °C	200 °C	0.05 in	1.27 mm	14				Unshielded	Poly-Vinyl Chloride (PVC)			Blue	7	36 AWG			Copper Silver Coated	28 AWG										0.7 in	17.78 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 156.97
		1	$ 40.65
		1	$ 277.72
		1	$ 1039.66
		5	$ 892.09
		5	$ 226.73
		5	$ 128.80
		5	$ 33.54
		10	$ 118.06
		10	$ 30.86
		10	$ 207.95
		25	$ 104.65
		25	$ 183.80
		25	$ 27.64
		50	$ 95.93
		50	$ 178.44
		50	$ 25.36
		100	$ 23.21
		100	$ 89.22
	Digi-Spool®, Continuous Spool	1	$ 40.35
		2	$ 36.59
		3	$ 34.55
		5	$ 32.13
		7	$ 30.63
		10	$ 29.11
		25	$ 25.56
		50	$ 23.18
		100	$ 21.05
	Spool	1	$ 3369.24

Description

General part information

3601 Series

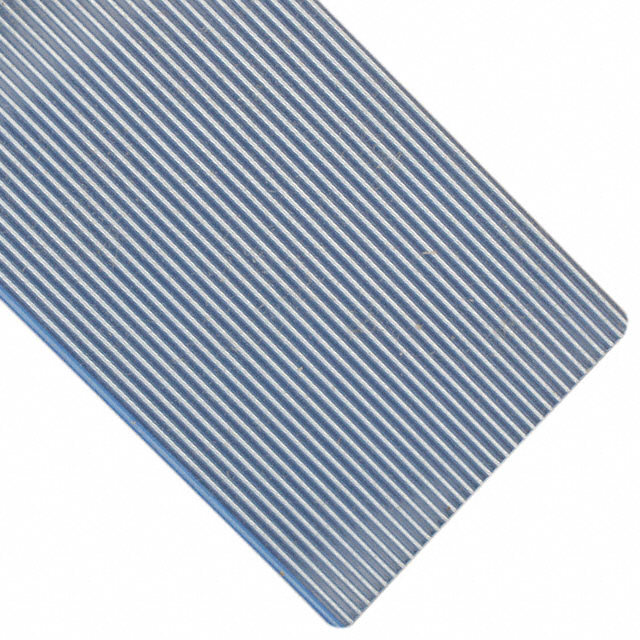

Flat Ribbon Cable Blue 34 Conductors 0.050" (1.27mm) Flat Cable Enter Number of Feet in Order Quantity
