RA2-1A-DC-2-AL

Active

Switch Components

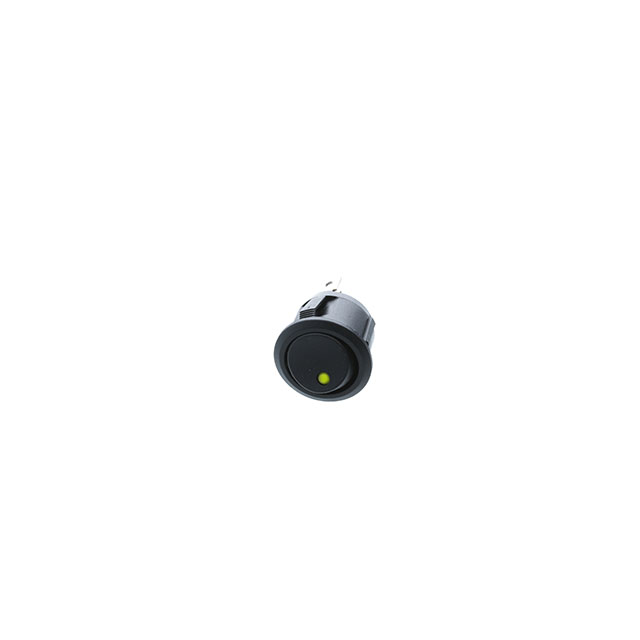

SWITCH ROCKER SPST 20A 14V

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER SPST 20A 14V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RA2-1A-DC-2-AL	RA2-1A Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round - Illuminated	Round - Illuminated
Circuit	SPST	SPST
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	20 A	20 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination Type, Color	Amber, LED	LED, Blue, Amber
Illumination Voltage (Nominal)	14 VDC	14 VDC
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm	20.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - DC	14 V	14 V

SWITCH ROCKER SPST 20A 14V

Part	Termination Style	Circuit	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Type, Color	Current Rating (Amps)	Illumination Voltage (Nominal)	Voltage Rating - DC	Mounting Type	Panel Cutout Dimensions [diameter]	Actuator Type	Actuator Marking	Switch Function	Electrical Life	Color - Actuator/Cap
Switch Components RA2-1A-DC-2-UL	Quick Connect - 0.187" (4.7mm)	SPST	10000 Steps	-25 °C	85 °C	Blue, LED	20 A	14 VDC	14 V	Panel Mount, Snap-In	20.2 mm	Round - Illuminated	No Marking	On-Off	6000 Cycles	Black
Switch Components RA2-1A-DC-2-AL	Quick Connect - 0.187" (4.7mm)	SPST	10000 Steps	-25 °C	85 °C	Amber, LED	20 A	14 VDC	14 V	Panel Mount, Snap-In	20.2 mm	Round - Illuminated	No Marking	On-Off	6000 Cycles	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.86

General part information

Rocker Switch SPST 20A (DC) Panel Mount, Snap-In
