Q-0J03H0005009i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB PLUG-JACK 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J03H0005009i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB PLUG-JACK 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J03H0005009i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0J03H0 Series

Part	Length	Length	Frequency - Max [Max]	1st Connector	Cable Type	Color	Overall Impedance	Features	2nd Connector Mounting Feature	2nd Connector Mounting Type	2nd Contact Gender	1st Connector Mounting Type	2nd Connector	1st Contact Gender	Style	Length
Amphenol Custom Cable Q-0J03H0005.75M	29.53 "	750 mm	4 GHz	BNC Plug	RG-316	Copper	50 Ohms	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	SMB Jack Right Angle	Male	BNC to SMB
Amphenol Custom Cable Q-0J03H0005072i	72 in	1.8 m	4 GHz	BNC Plug	RG-316	Copper	50 Ohms	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	SMB Jack Right Angle	Male	BNC to SMB	6 ft
Amphenol Custom Cable Q-0J03H00051.5M	59.1 in	1.5 m	4 GHz	BNC Plug	RG-316	Copper	50 Ohms	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	SMB Jack Right Angle	Male	BNC to SMB	4.9 ft
Amphenol Custom Cable Q-0J03H0005001M	39.4 in	1 m	4 GHz	BNC Plug	RG-316	Copper	50 Ohms	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	SMB Jack Right Angle	Male	BNC to SMB	3.3 ft
Amphenol Custom Cable Q-0J03H0005048i	48 in	1200 mm	4 GHz	BNC Plug	RG-316	Copper	50 Ohms	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	SMB Jack Right Angle	Male	BNC to SMB	4 ft
Amphenol Custom Cable Q-0J03H0003003i	3 in	76.2 mm	4 GHz	BNC Plug	RG-174	Black	50 Ohms	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	SMB Jack Right Angle	Male	BNC to SMB
Amphenol Custom Cable Q-0J03H0005009i	9 "	228.6 mm	4 GHz	BNC Plug	RG-316	Copper	50 Ohms	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	SMB Jack Right Angle	Male	BNC to SMB
Amphenol Custom Cable Q-0J03H0005006i	6 in	152.4 mm	4 GHz	BNC Plug	RG-316	Copper	50 Ohms	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	SMB Jack Right Angle	Male	BNC to SMB
Amphenol Custom Cable Q-0J03H0003048i	48 in	1200 mm	4 GHz	BNC Plug	RG-174	Black	50 Ohms	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	SMB Jack Right Angle	Male	BNC to SMB	4 ft
Amphenol Custom Cable Q-0J03H0003108i	108 in	2.7 m	4 GHz	BNC Plug	RG-174	Black	50 Ohms	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	SMB Jack Right Angle	Male	BNC to SMB	9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 112.76
		25	$ 110.57
		50	$ 108.38
		100	$ 106.19
		250	$ 104.00

Description

General part information

Q-0J03H0 Series

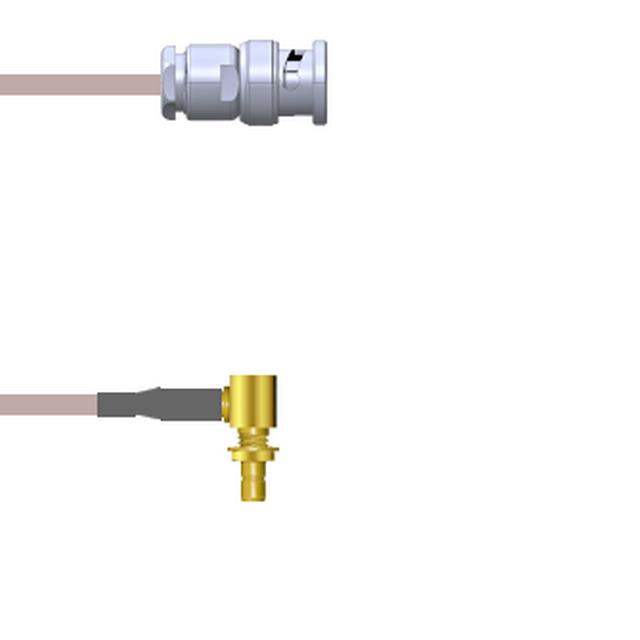

Cable Assembly Coaxial BNC to SMB RG-316 9.000" (228.60mm)
