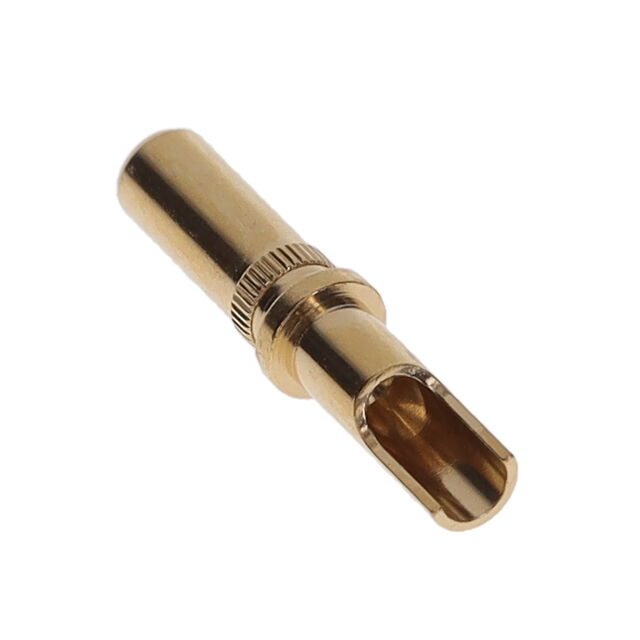

1968-1-01-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
STANDARD I.C. PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1968-1-01-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
STANDARD I.C. PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1968-1-01-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.12 in |
| Flange Diameter [diameter] | 3.05 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 6.53 mm |
| Length - Above Flange [x] | 0.257 in |
| Length - Below Flange [x] | 0.238 in |
| Length - Below Flange [x] | 6.05 mm |
| Mounting Hole Diameter [diameter] | 0.097 in |
| Mounting Hole Diameter [diameter] | 2.46 mm |
| Mounting Type | Through Hole |
| Pin Size - Below Flange [diameter] | 2.21 mm |
| Pin Size - Below Flange [diameter] | 0.087 in |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Knurled, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.42 | |
| 10 | $ 1.24 | |||
| 25 | $ 1.19 | |||
| 50 | $ 1.16 | |||
| 100 | $ 1.11 | |||
| 250 | $ 1.00 | |||
| 500 | $ 0.92 | |||
| 1000 | $ 0.79 | |||
| 3000 | $ 0.74 | |||
Description
General part information
1968-1 Series
PC Pin Terminal Connector Through Hole Gold 0.094" (2.39mm) Dia
