MLS640-260-570

Active

Aven Tools

DIGITAL MICROSCOPE MIGHTY CAM EI

Search across all available documentation for this part.

Active

Aven Tools

DIGITAL MICROSCOPE MIGHTY CAM EI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

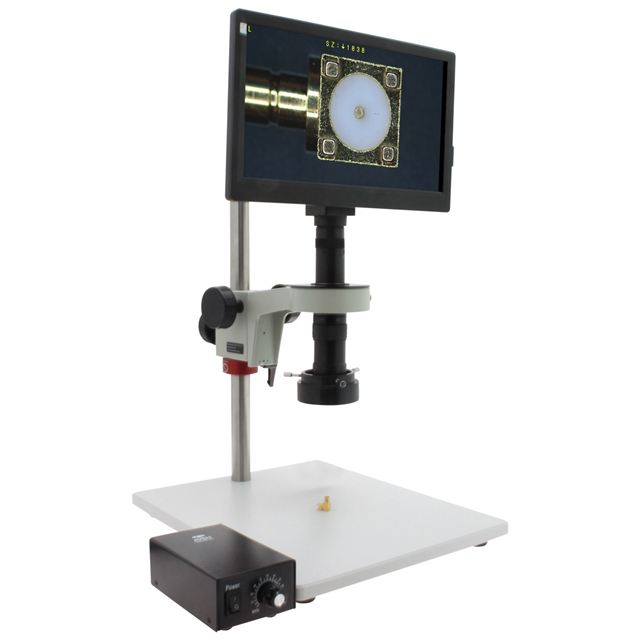

Microscope, Digital 13.5x ~ 182x LED (96)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	MLS640-260-570	MLS640 Series

Camera Type	CMOS 1/2.8"	CMOS 1/1.8, CMOS 1/2.8"
Field of View [Max]	0.31 "	0.31 "
Field of View [Max]	8 mm	8 mm
Field of View [Min]	0.05 "	0.05 "
Field of View [Min]	1.2 mm	1.2 mm
Illumination	LED	LED
Includes	Stand, Camera, Ring Light, Lens, Focus Mount, Adapter Plate	Stand, Camera, Ring Light, Lens, Focus Mount, Adapter Plate
Interface	USB	USB
Magnification Range [Max]	182 x	182 - 349 x
Magnification Range [Min]	13.5 x	13.5 - 26 x
Type	Digital, Microscope	Digital, Microscope
Working Distance	50 mm, 160 mm	50 - 160 mm
Working Distance [Max]	6.3 in	6.3 in
Working Distance [Min]	1.97 in	1.97 in

DIGITAL MICROSCOPE MIGHTY CAM US

Part	Illumination	Camera Type	Type	Field of View [Max]	Field of View [Max]	Field of View [Min]	Field of View [Min]	Magnification Range [Max]	Magnification Range [Min]	Working Distance [Max]	Working Distance [Min]	Working Distance	Interface	Includes
Aven Tools MLS640-244-556	LED	CMOS 1/1.8	Digital, Microscope	0.31 "	8 mm	0.05 "	1.2 mm	349 x	26 x	6.3 in	1.97 in	50 mm, 160 mm	USB	Adapter Plate, Camera, Focus Mount, Lens, Ring Light, Stand
Aven Tools MLS640-244-534	LED	CMOS 1/1.8	Digital, Microscope	0.31 "	8 mm	0.05 "	1.2 mm	349 x	26 x	6.3 in	1.97 in	50 mm, 160 mm	USB	Adapter Plate, Camera, Focus Mount, Lens, Ring Light, Stand
Aven Tools MLS640-260-570	LED	CMOS 1/2.8"	Digital, Microscope	0.31 "	8 mm	0.05 "	1.2 mm	182 x	13.5 x	6.3 in	1.97 in	50 mm, 160 mm	USB	Adapter Plate, Camera, Focus Mount, Lens, Ring Light, Stand
Aven Tools MLS640-260-556	LED	CMOS 1/2.8"	Digital, Microscope	0.31 "	8 mm	0.05 "	1.2 mm	182 x	13.5 x	6.3 in	1.97 in	50 mm, 160 mm	USB	Adapter Plate, Camera, Focus Mount, Lens, Ring Light, Stand
Aven Tools MLS640-244-570	LED	CMOS 1/1.8	Digital, Microscope	0.31 "	8 mm	0.05 "	1.2 mm	349 x	26 x	6.3 in	1.97 in	50 mm, 160 mm	USB	Adapter Plate, Camera, Focus Mount, Lens, Ring Light, Stand
