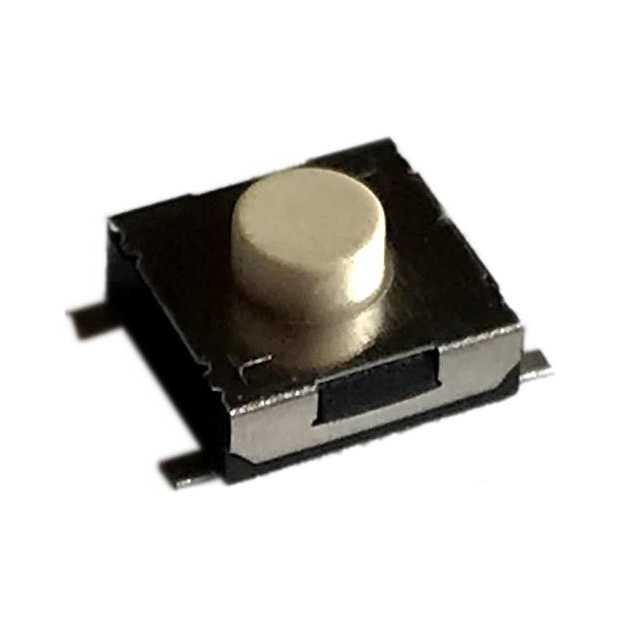

222CMVBBR
ActiveCTS Electrocomponents
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
222CMVBBR
ActiveCTS Electrocomponents
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 222CMVBBR | 222CMV Series |
|---|---|---|
| Actuator Height off PCB, Vertical | 3.4 mm | 3.4 mm |
| Actuator Height off PCB, Vertical | - | 3.1 mm |
| Actuator Orientation | Top Actuated | Top Actuated |
| Actuator Type | Standard | Standard |
| Circuit | SPST-NO | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC | 0.05 - 12 A |
| Features | Tactile Feedback | Tactile Feedback |
| Illumination | Non-Illuminated | Non-Illuminated |
| Mechanical Life | 500000 Cycles | 500000 - 1000000 Cycles |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Force | 260 gf | 260 gf |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outline [x] | 6.2 mm | 6.2 mm |
| Outline [y] | 6.2 mm | 6.2 mm |
| Switch Function | Off-Mom | Off-Mom |
| Switch Travel | 0.25 mm | 0.25 mm |
| Termination Style | Gull Wing | Gull Wing |
222CMV Series
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Outline [y] | Outline [x] | Termination Style | Circuit | Actuator Orientation | Mechanical Life | Actuator Height off PCB, Vertical [z] | Contact Rating @ Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Switch Travel | Operating Force | Features | Mounting Type | Switch Function | Illumination | Actuator Height off PCB, Vertical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CTS Electrocomponents 222CMVCBR | 6.2 mm | 6.2 mm | Gull Wing | SPST-NO | Top Actuated | 500000 Cycles | 3.1 mm | 0.05 A, 12 VDC | 85 °C | -40 °C | Standard | 0.25 mm | 260 gf | Tactile Feedback | Surface Mount | Off-Mom | Non-Illuminated | |
CTS Electrocomponents 222CMVBAR | 6.2 mm | 6.2 mm | Gull Wing | SPST-NO | Top Actuated | 1000000 Cycles | 0.05 A, 12 VDC | 85 °C | -40 °C | Standard | 0.25 mm | Tactile Feedback | Surface Mount | Off-Mom | Non-Illuminated | 3.4 mm | ||
CTS Electrocomponents 222CMVBBR | 6.2 mm | 6.2 mm | Gull Wing | SPST-NO | Top Actuated | 500000 Cycles | 0.05 A, 12 VDC | 85 °C | -40 °C | Standard | 0.25 mm | 260 gf | Tactile Feedback | Surface Mount | Off-Mom | Non-Illuminated | 3.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10400 | $ 0.14 | |
Description
General part information
222CMV Series
Tactile Switch SPST-NO Top Actuated Surface Mount
