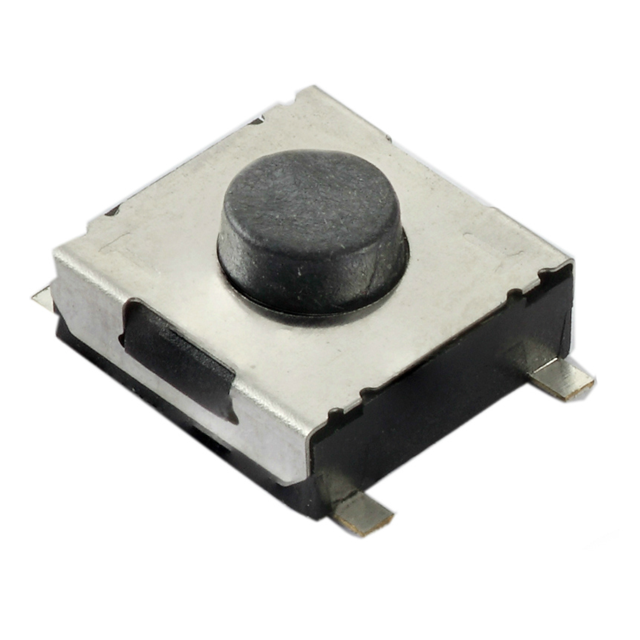

222CMVBAR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount

Technical documentation and resources

Specification	222CMVBAR	222CMV Series

Actuator Height off PCB, Vertical	3.4 mm	3.4 mm
Actuator Height off PCB, Vertical	-	3.1 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Features	Tactile Feedback	Tactile Feedback
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	1000000 Cycles	500000 - 1000000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Force	-	260 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	6.2 mm	6.2 mm
Outline [y]	6.2 mm	6.2 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	Gull Wing	Gull Wing

Part	Outline [y]	Outline [x]	Termination Style	Circuit	Actuator Orientation	Mechanical Life	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Switch Travel	Operating Force	Features	Mounting Type	Switch Function	Illumination	Actuator Height off PCB, Vertical
CTS Electrocomponents 222CMVCBR	6.2 mm	6.2 mm	Gull Wing	SPST-NO	Top Actuated	500000 Cycles	3.1 mm	0.05 A, 12 VDC	85 °C	-40 °C	Standard	0.25 mm	260 gf	Tactile Feedback	Surface Mount	Off-Mom	Non-Illuminated
CTS Electrocomponents 222CMVBAR	6.2 mm	6.2 mm	Gull Wing	SPST-NO	Top Actuated	1000000 Cycles		0.05 A, 12 VDC	85 °C	-40 °C	Standard	0.25 mm		Tactile Feedback	Surface Mount	Off-Mom	Non-Illuminated	3.4 mm
CTS Electrocomponents 222CMVBBR	6.2 mm	6.2 mm	Gull Wing	SPST-NO	Top Actuated	500000 Cycles		0.05 A, 12 VDC	85 °C	-40 °C	Standard	0.25 mm	260 gf	Tactile Feedback	Surface Mount	Off-Mom	Non-Illuminated	3.4 mm
