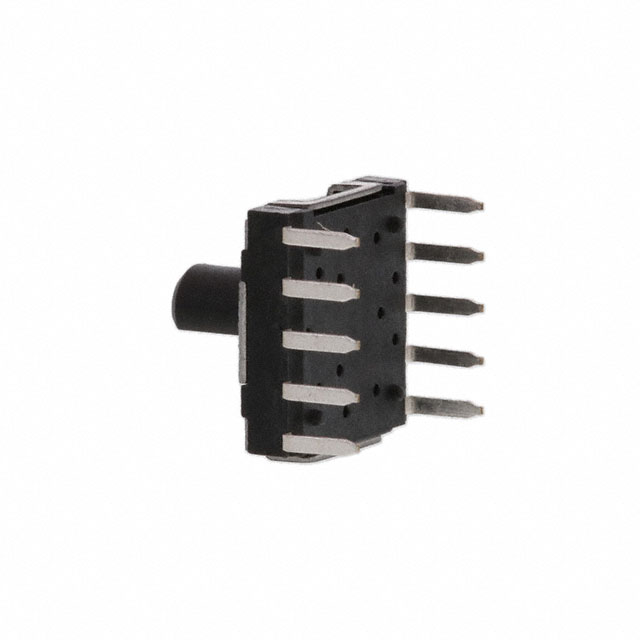

KC1901A
ActiveE-Switch
SWITCH ROTARY DIP SP9T 0.1A 16V
Deep-Dive with AI
Search across all available documentation for this part.
KC1901A
ActiveE-Switch
SWITCH ROTARY DIP SP9T 0.1A 16V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KC1901A |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Rotary with Shaft |
| Circuit | SP9T |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 10000 Cycles |
| Height Above Board | 0.386 in |
| Height Above Board | 9.8 mm |
| Length | 12.4 mm |
| Length | 0.488 in |
| Mechanical Life | 10000 Steps |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 16 VDC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.67 | |
| 5 | $ 1.44 | |||
| 10 | $ 1.35 | |||
| 25 | $ 1.24 | |||
| 50 | $ 1.16 | |||
| 100 | $ 1.09 | |||
| 400 | $ 0.95 | |||
| 800 | $ 0.89 | |||
| 1200 | $ 0.86 | |||
Description
General part information
KC1901 Series
Dip Switch SP9T 9 Position Through Hole Rotary with Shaft Actuator 100mA 16VDC
Documents
Technical documentation and resources
No documents available
