095-666-44882-1
ActiveAmphenol RF

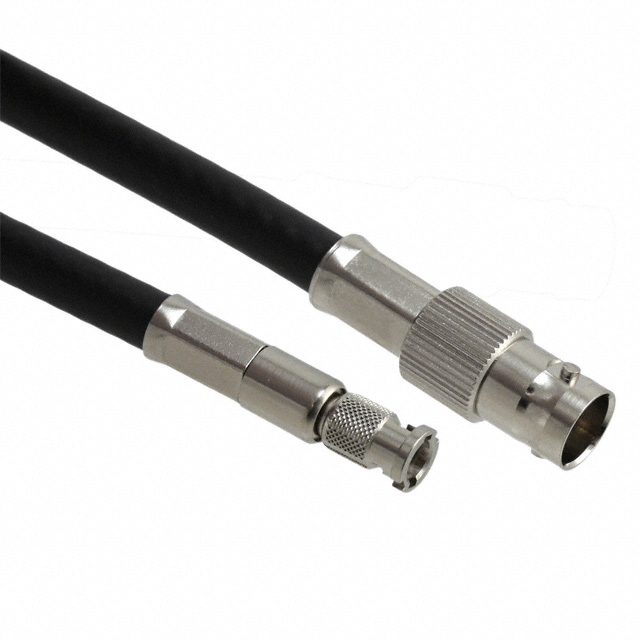

CBL ASSY BNC-HDBNC JACK-PLUG 6"
Deep-Dive with AI
Search across all available documentation for this part.
095-666-44882-1
ActiveAmphenol RF
CBL ASSY BNC-HDBNC JACK-PLUG 6"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-666-44882-1 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | HD-BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | Belden 1694A |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 152.4 mm |
| Length | 6 in |
| Overall Impedance | 75 Ohms |
| Style | BNC to HD-BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.86 | |
| 10 | $ 30.52 | |||
| 25 | $ 29.20 | |||
| 50 | $ 28.26 | |||
| 100 | $ 27.32 | |||
| 250 | $ 25.81 | |||
Description
General part information
095-666 Series
Cable Assembly Coaxial BNC to HD-BNC Belden 1694A 6.000" (152.40mm)
Documents
Technical documentation and resources
No documents available
