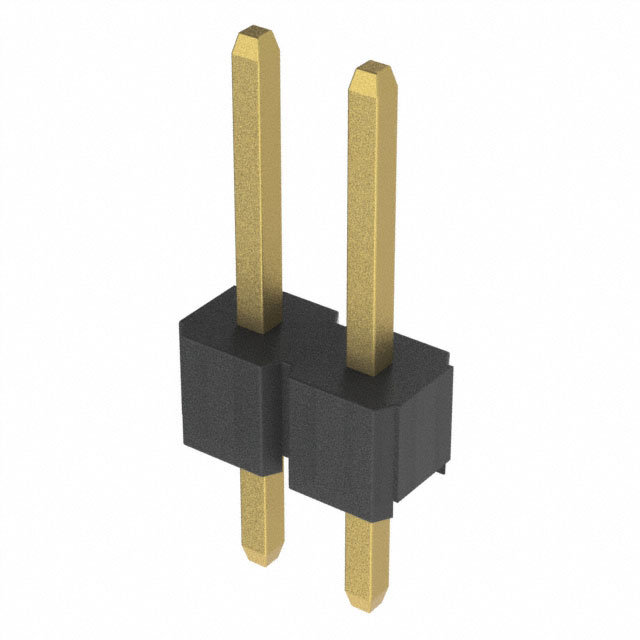

CONN HEADER VERT 2POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

PH1-02-UA

Active

Adam Tech

CONN HEADER VERT 2POS 2.54MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PH1-02-UA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	11.54 mm
Overall Contact Length	0.454 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	250 VAC

PH1 Series

Part	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Material	Insulation Color	Number of Rows	Mounting Type	Overall Contact Length	Overall Contact Length	Fastening Type	Contact Finish Thickness - Post	Contact Finish - Post	Insulation Material	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Type	Termination	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Contact Finish Thickness - Mating	Shrouding	Voltage Rating	Number of Positions
Adam Tech PH1-03-UA	Square	6 mm	0.236 in	Brass	Black	1	Through Hole	11.54 mm	0.454 in	Push-Pull	Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	All	0.1 in	2.54 mm	UL94 V-0	Male Pin	Solder	3 A	0.12 in	3.05 mm	Header	-40 °C	105 ░C	0.098 in	2.5 mm	Gold	Flash	Unshrouded	250 VAC
Adam Tech PH1-08-UA	Square	6 mm	0.236 in	Brass	Black	1	Through Hole	11.54 mm	0.454 in	Push-Pull	Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	All	0.1 in	2.54 mm	UL94 V-0	Male Pin	Solder	3 A	0.12 in	3.05 mm	Header	-40 °C	105 ░C	0.098 in	2.5 mm	Gold	Flash	Unshrouded	250 VAC	8
Adam Tech PH1-06-UA	Square	6 mm	0.236 in	Brass	Black	1	Through Hole	11.54 mm	0.454 in	Push-Pull	Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	All	0.1 in	2.54 mm	UL94 V-0	Male Pin	Solder	3 A	0.12 in	3.05 mm	Header	-40 °C	105 ░C	0.098 in	2.5 mm	Gold	Flash	Unshrouded	250 VAC	6
Adam Tech PH1-02-UA	Square	6 mm	0.236 in	Brass	Black	1	Through Hole	11.54 mm	0.454 in	Push-Pull	Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	All	0.1 in	2.54 mm	UL94 V-0	Male Pin	Solder	3 A	0.12 in	3.05 mm	Header	-40 °C	105 ░C	0.098 in	2.5 mm	Gold	Flash	Unshrouded	250 VAC	2
Adam Tech PH1-17-UA	Square	6 mm	0.236 in	Brass	Black	1	Through Hole	11.54 mm	0.454 in	Push-Pull	Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	All	0.1 in	2.54 mm	UL94 V-0	Male Pin	Solder	3 A	0.12 in	3.05 mm	Header	-40 °C	105 ░C	0.098 in	2.5 mm	Gold	Flash	Unshrouded	250 VAC
Adam Tech PH1-18-UA	Square	6 mm	0.236 in	Brass	Black	1	Through Hole	11.54 mm	0.454 in	Push-Pull	Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	All	0.1 in	2.54 mm	UL94 V-0	Male Pin	Solder	3 A	0.12 in	3.05 mm	Header	-40 °C	105 ░C	0.098 in	2.5 mm	Gold	Flash	Unshrouded	250 VAC	18
Adam Tech PH1-15-UA	Square	6 mm	0.236 in	Brass	Black	1	Through Hole	11.54 mm	0.454 in	Push-Pull	Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	All	0.1 in	2.54 mm	UL94 V-0	Male Pin	Solder	3 A	0.12 in	3.05 mm	Header	-40 °C	105 ░C	0.098 in	2.5 mm	Gold	Flash	Unshrouded	250 VAC	15
Adam Tech PH1-14-UA	Square	6 mm	0.236 in	Brass	Black	1	Through Hole	11.54 mm	0.454 in	Push-Pull	Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	All	0.1 in	2.54 mm	UL94 V-0	Male Pin	Solder	3 A	0.12 in	3.05 mm	Header	-40 °C	105 ░C	0.098 in	2.5 mm	Gold	Flash	Unshrouded	250 VAC	14
