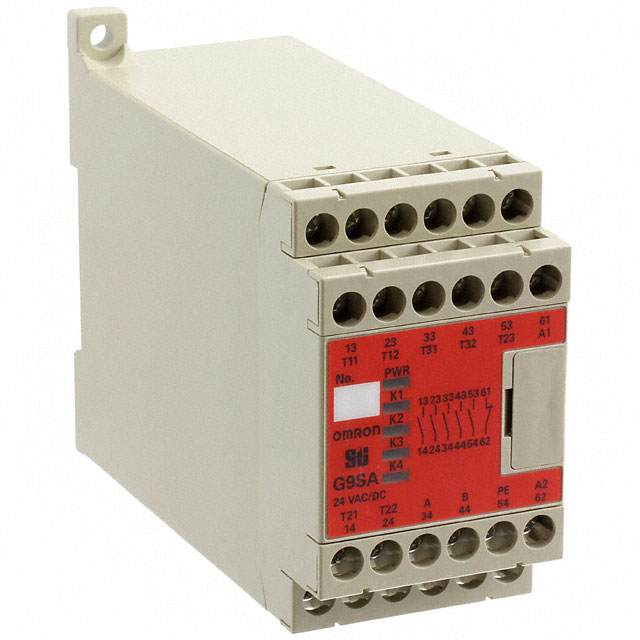

G9SA-501 AC100-240
ActiveOmron Automation and Safety
RELAY SAFETY 5P 120-240V
G9SA-501 AC100-240
ActiveOmron Automation and Safety
RELAY SAFETY 5P 120-240V
Description
General part information
G9SA-501 Series
RELAY SAFETY 5P 120-240V
Technical Specifications
Parameters and characteristics for this part
| Specification | G9SA-501 AC100-240 |
|---|---|
| Coil Current | 0.06 A |
| Coil Voltage (Max) | 240 VAC |
| Coil Voltage (Min) | 100 VAC |
| Contact Form | A, 5, PST-NO, Form |
| Contact Rating (Current) | 5 A |
| Mounting Type | DIN Rail |
| Operate Time | 30 ms |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Pin Count | 5 |
| Release Time | 10 ms |
| Switching Voltage AC (Max) | 250 VAC |
| Switching Voltage DC (Max) | 30 VDC |
| Termination Style | Screw Terminal |
