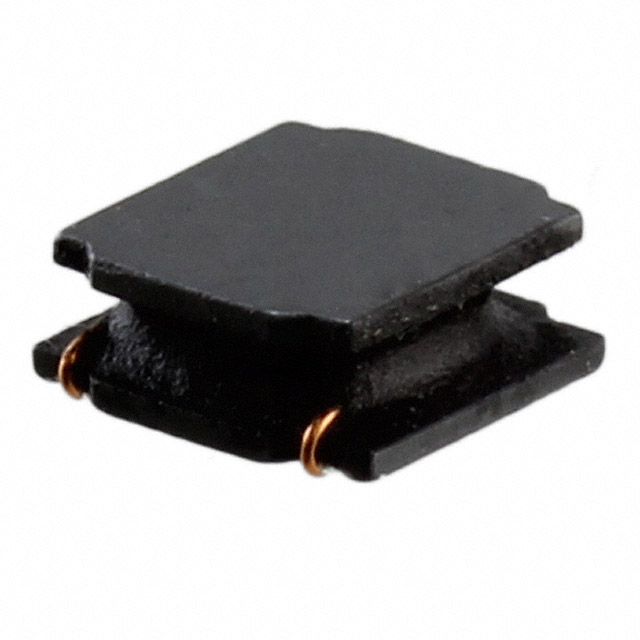

L4018C2R2MDWDT
ObsoleteKEMET
FIXED IND 2.2UH 1.44A 60MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L4018C2R2MDWDT
ObsoleteKEMET
FIXED IND 2.2UH 1.44A 60MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L4018C2R2MDWDT |
|---|---|
| Current Rating (Amps) | 1.44 A |
| Frequency - Self Resonant | 52 MHz |
| Height - Seated (Max) [Max] | 0.071 " |
| Height - Seated (Max) [Max] | 1.8 mm |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [y] | 0.157 in |
| Size / Dimension [y] | 4 mm |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
L4018C Series
2.2 µH Shielded Drum Core, Wirewound Inductor 1.44 A 60mOhm Max Nonstandard
