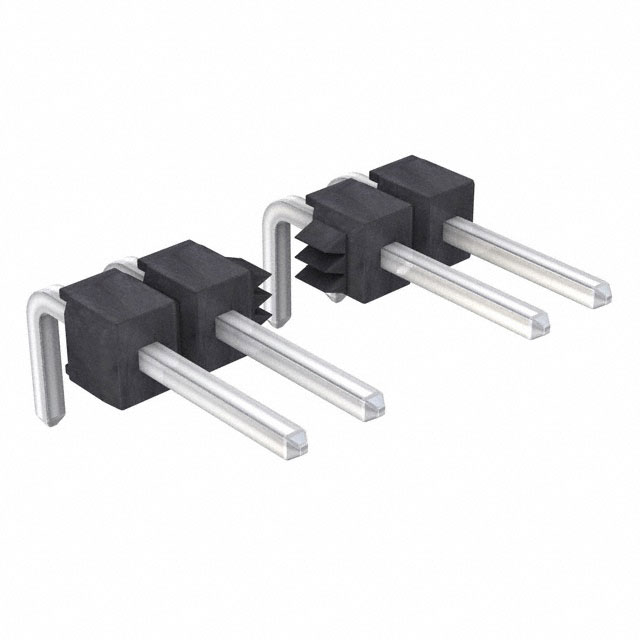

M20-9962046
ActiveHarwin Inc.
BOARD CONNECTOR, 20 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, SOLDER TERMINAL, LEAD FREE
Deep-Dive with AI
Search across all available documentation for this part.
M20-9962046
ActiveHarwin Inc.
BOARD CONNECTOR, 20 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, SOLDER TERMINAL, LEAD FREE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M20-9962046 |
|---|---|
| Connector Type | Cuttable, Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 6.1 mm |
| Contact Length - Mating [x] | 0.24 in |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
M20-996 Series
| Part | Number of Positions Loaded | Contact Shape | Connector Type | Current Rating (Amps) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Contact Length - Mating | Contact Length - Mating [x] | Contact Type | Style | Termination | Insulation Material | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Finish - Mating | Number of Rows | Fastening Type | Contact Length - Post | Contact Length - Post | Shrouding | Contact Material | Insulation Height | Insulation Height | Number of Positions | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | All | Square | Cuttable Header | 3 A | Through Hole Right Angle | -40 °C | 105 ░C | UL94 V-0 | 6.1 mm | 0.24 in | Male Pin | Board to Board Cable | Solder | Nylon 6T Polyamide (PA6T) | 0.1 in | 2.54 mm | Black | Gold | 1 | Push-Pull | 0.118 in | 3 mm | Unshrouded | Brass | 0.1 in | 2.54 mm | ||
Harwin Inc. | All | Square | Cuttable Header | 3 A | Through Hole Right Angle | -40 °C | 105 ░C | UL94 V-0 | 6.1 mm | 0.24 in | Male Pin | Board to Board Cable | Solder | Nylon 6T Polyamide (PA6T) | 0.1 in | 2.54 mm | Black | Gold | 1 | Push-Pull | 0.118 in | 3 mm | Unshrouded | Brass | 0.1 in | 2.54 mm | 36 | |
Harwin Inc. | All | Square | Cuttable Header | 3 A | Through Hole Right Angle | -40 °C | 105 ░C | UL94 V-0 | 6.1 mm | 0.24 in | Male Pin | Board to Board Cable | Solder | Nylon 6T Polyamide (PA6T) | 0.1 in | 2.54 mm | Black | Gold | 1 | Push-Pull | 0.118 in | 3 mm | Unshrouded | Brass | 0.1 in | 2.54 mm | 6 | |
Harwin Inc. | All | Square | Cuttable Header | 3 A | Through Hole Right Angle | -40 °C | 105 ░C | UL94 V-0 | 6.1 mm | 0.24 in | Male Pin | Board to Board Cable | Solder | Nylon 6T Polyamide (PA6T) | 0.1 in | 2.54 mm | Black | 1 | Push-Pull | 0.118 in | 3 mm | Unshrouded | Brass | 0.1 in | 2.54 mm | 20 | Tin | |
Harwin Inc. | All | Square | Cuttable Header | 3 A | Through Hole Right Angle | -40 °C | 105 ░C | UL94 V-0 | 6.1 mm | 0.24 in | Male Pin | Board to Board Cable | Solder | Nylon 6T Polyamide (PA6T) | 0.1 in | 2.54 mm | Black | Gold | 1 | Push-Pull | 0.118 in | 3 mm | Unshrouded | Brass | 0.1 in | 2.54 mm | 10 | |
Harwin Inc. | All | Square | Cuttable Header | 3 A | Through Hole Right Angle | -40 °C | 105 ░C | UL94 V-0 | 6.1 mm | 0.24 in | Male Pin | Board to Board Cable | Solder | Nylon 6T Polyamide (PA6T) | 0.1 in | 2.54 mm | Black | 1 | Push-Pull | 0.118 in | 3 mm | Unshrouded | Brass | 0.1 in | 2.54 mm | 36 | Tin | |
Harwin Inc. | All | Square | Cuttable Header | 3 A | Through Hole Right Angle | -40 °C | 105 ░C | UL94 V-0 | 6.1 mm | 0.24 in | Male Pin | Board to Board Cable | Solder | Nylon 6T Polyamide (PA6T) | 0.1 in | 2.54 mm | Black | 1 | Push-Pull | 0.118 in | 3 mm | Unshrouded | Brass | 0.1 in | 2.54 mm | 9 | Tin | |
Harwin Inc. | All | Square | Cuttable Header | 3 A | Through Hole Right Angle | -40 °C | 105 ░C | UL94 V-0 | 6.1 mm | 0.24 in | Male Pin | Board to Board Cable | Solder | Nylon 6T Polyamide (PA6T) | 0.1 in | 2.54 mm | Black | 1 | Push-Pull | 0.118 in | 3 mm | Unshrouded | Brass | 0.1 in | 2.54 mm | 6 | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M20-996 Series
Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
