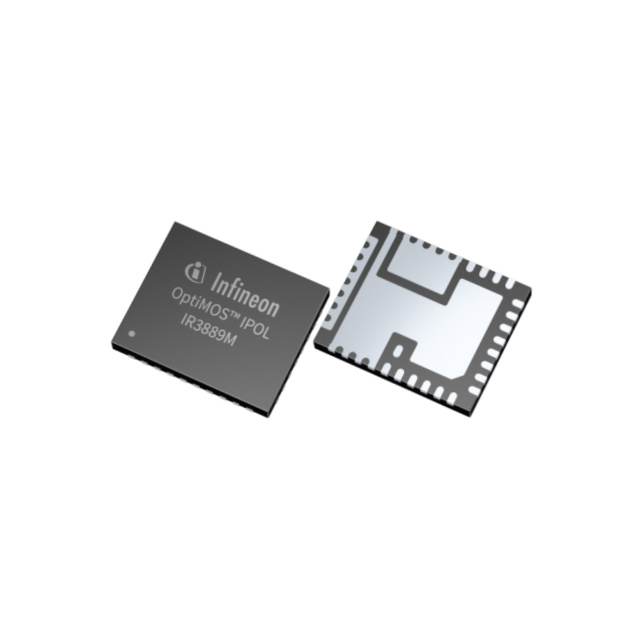

IR3889MTRPBFAUMA1
ActiveCONV DC-DC 2V TO 17V SYNCHRONOUS STEP DOWN SINGLE-OUT 0.8V 30A 36-PIN IQFN EP T/R
Deep-Dive with AI
Search across all available documentation for this part.
IR3889MTRPBFAUMA1
ActiveCONV DC-DC 2V TO 17V SYNCHRONOUS STEP DOWN SINGLE-OUT 0.8V 30A 36-PIN IQFN EP T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IR3889MTRPBFAUMA1 |
|---|---|
| Current - Output | 30 A |
| Frequency - Switching [Max] | 2 MHz |
| Frequency - Switching [Min] | 600 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Supplier Device Package | PG-IQFN-36-2 |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 17 V |
| Voltage - Input (Min) [Min] | 2 V |
| Voltage - Output (Max) [Max] | 17 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.16 | |
| 10 | $ 5.53 | |||
| 25 | $ 5.23 | |||
| 100 | $ 4.53 | |||
| 250 | $ 4.30 | |||
| 500 | $ 3.86 | |||
| 1000 | $ 3.25 | |||
| 2500 | $ 3.09 | |||
| Digi-Reel® | 1 | $ 6.16 | ||
| 10 | $ 5.53 | |||
| 25 | $ 5.23 | |||
| 100 | $ 4.53 | |||
| 250 | $ 4.30 | |||
| 500 | $ 3.86 | |||
| 1000 | $ 3.25 | |||
| 2500 | $ 3.09 | |||
| Tape & Reel (TR) | 5000 | $ 2.88 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 4.82 | |
| 10 | $ 3.58 | |||
| 25 | $ 3.48 | |||
| 50 | $ 3.40 | |||
| 100 | $ 3.31 | |||
| 250 | $ 3.16 | |||
| 500 | $ 3.08 | |||
| 1000 | $ 3.01 | |||
Description
General part information
IR3889 Series
The IR3889 OptiMOSTMIPOL is an easy-to-use, fully integrated DC-DC buck regulator. The onboard PWM controller and OptiMOS™ MOSFETs with integrated bootstrap diode make the IR3889 a small footprint solution, providing high-efficient power delivery. Furthermore, it uses a fast Constant-On-Time (COT) control scheme, which simplifies the design efforts and achieves fast control response.
