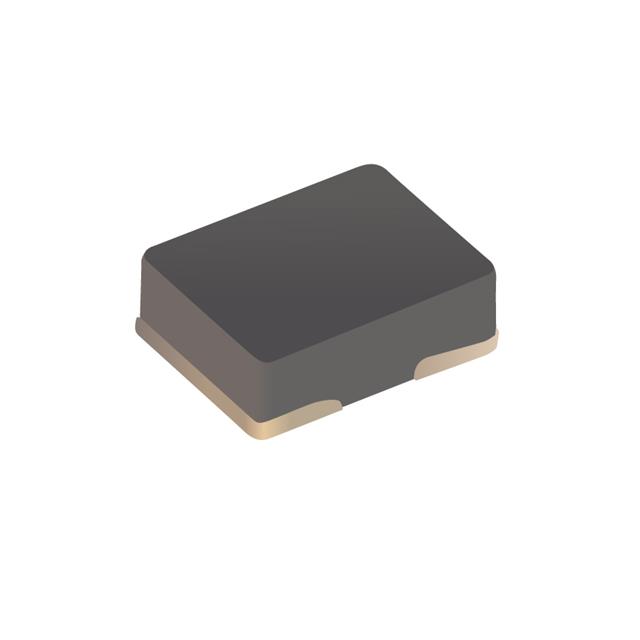

SRP3212A-3R3M
ActiveBourns Inc.
INDUCTOR POWER SHIELDED WIREWOUND 3.3UH 20% 100KHZ 5Q-FACTOR METAL ALLOY POWDER 3.1A 0.101OHM DCR 1210 AUTOMOTIVE AEC-Q200 T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRP3212A-3R3M
ActiveBourns Inc.
INDUCTOR POWER SHIELDED WIREWOUND 3.3UH 20% 100KHZ 5Q-FACTOR METAL ALLOY POWDER 3.1A 0.101OHM DCR 1210 AUTOMOTIVE AEC-Q200 T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRP3212A-3R3M |
|---|---|
| Current - Saturation (Isat) | 3.4 A |
| Current Rating (Amps) | 3.1 A |
| Features | Flat Wire |
| Frequency - Self Resonant | 28 MHz |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Q @ Freq | 100 kHz, 5 |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Tolerance | 20 % |
SRP3212A Series
| Part | Tolerance | Inductance | Current - Saturation (Isat) | Package / Case | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Features | Current Rating (Amps) | Q @ Freq | Inductance Frequency - Test | Ratings | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Material - Core | Shielding | Mounting Type | Frequency - Self Resonant | DC Resistance (DCR) [Max] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 20 % | 3.3 µH | 3.4 A | 1210 | 3225 Metric | 1.2 mm | 0.047 in | Flat Wire | 3.1 A | 5 100 kHz | 100 kHz | AEC-Q200 | 3.2 mm | 2.5 mm | 0.126 in | 0.098 in | Metal | Shielded | Surface Mount | 28 MHz | ||
Bourns Inc. | 20 % | 4.7 ÁH | 2.8 A | 1210 | 3225 Metric | 1.2 mm | 0.047 in | Flat Wire | 2.2 A | 5 100 kHz | 100 kHz | AEC-Q200 | 3.2 mm | 2.5 mm | 0.126 in | 0.098 in | Metal | Shielded | Surface Mount | 25 MHz | 146 mOhm | |
Bourns Inc. | 20 % | 470 nH | 8.2 A | 1210 | 3225 Metric | 1.2 mm | 0.047 in | Flat Wire | 7 A | 3 100 kHz | 100 kHz | AEC-Q200 | 3.2 mm | 2.5 mm | 0.126 in | 0.098 in | Metal | Shielded | Surface Mount | 100 MHz | 19 mOhm | |
Bourns Inc. | 20 % | 0.68 µH | 1210 | 3225 Metric | 1.2 mm | 0.047 in | Flat Wire | 6.2 A | 5 100 kHz | 100 kHz | AEC-Q200 | 3.2 mm | 2.5 mm | 0.126 in | 0.098 in | Metal | Shielded | Surface Mount | 24 mOhm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.27 | |
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.27 | ||
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 2000 | $ 0.11 | ||
| 4000 | $ 0.11 | |||
| 6000 | $ 0.10 | |||
| 10000 | $ 0.10 | |||
| 50000 | $ 0.09 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.33 | |
| 10 | $ 0.28 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.21 | |||
Description
General part information
SRP3212A Series
3.3 µH Shielded Inductor 3.1 A 101mOhm Max 1210 (3225 Metric) Flat Wire
