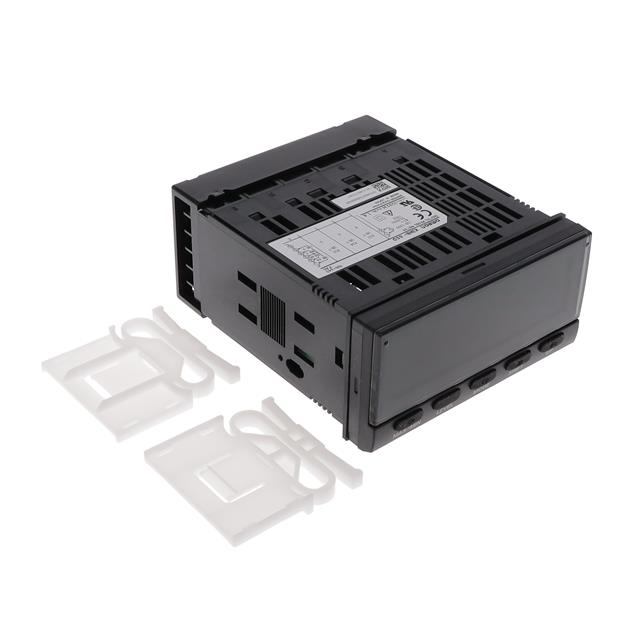

Specification	K3HB-SSD AC100-240

Display Characters - Height	0.56 in
Display Characters - Height (Option 2)	0.192 in
Display Type	LCD - Dual Color Characters, Backlight
Features	Option Cards Available
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP66
Maximum Number of Characters Per Row	5 characters
Measuring Range (Current) Maximum	0.02 A
Measuring Range (Current) Minimum	0 A
Measuring Range (DC) Maximum	10 V
Measuring Range (DC) Minimum	-10 V
Measuring Type	Process
Minimum Number of Characters Per Row	5 characters
Mounting Type	Panel Mount
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-10 °C
Output Type	Option Cards Available
Panel Cutout Length	92 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	45 mm
Termination Style	Screw Terminal
Type	Process Meter
Voltage - Supply (Maximum)	240 VAC
Voltage - Supply (Minimum)	100 VAC
Weight	0.662 lb

K3HB-SS Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Weight	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Output Type	Voltage - Supply (Option 1)	Voltage - Supply	Voltage - Supply (Option 2)	Termination Style	Features	Measuring Range (DC) Minimum	Measuring Range (Current) Maximum	Measuring Range (Current) Minimum	Measuring Range (DC) Maximum	Measuring Type	Ingress Protection Description	Ingress Protection IP Rating	Type	Mounting Type	Minimum Number of Characters Per Row	Maximum Number of Characters Per Row	Display Type	Display Characters - Height (Option 2)	Display Characters - Height	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)
Omron Automation and Safety K3HB-SSD 24VACVDC	-10 °C	55 °C	0.662 lb	45 mm	Rectangular	92 mm	Option Cards Available	24 VAC	24 VDC	24 DC	Screw Terminal	Option Cards Available	-10 V	0.02 A	0 A	10 V	Process	Dust Tight Water Resistant	IP66	Process Meter	Panel Mount	5 characters	5 characters	Backlight LCD - Dual Color Characters	0.192 in	0.56 in
Omron Automation and Safety K3HB-SSD AC100-240	-10 °C	55 °C	0.662 lb	45 mm	Rectangular	92 mm	Option Cards Available				Screw Terminal	Option Cards Available	-10 V	0.02 A	0 A	10 V	Process	Dust Tight Water Resistant	IP66	Process Meter	Panel Mount	5 characters	5 characters	Backlight LCD - Dual Color Characters	0.192 in	0.56 in	100 VAC	240 VAC
