General part information
Advanced Energy Industries C-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, -250V HVout, 20W, Thru-hole Mount, Regulated, I10 Interface 0 to +10 VDC Monitors/Controls, Mu Metal shield, Eared mounting flange
Technical documentation and resources
Parameters and characteristics for this part
| Specification | C3F |
|---|---|
| Applications | Audio, Instrumentation |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 15 A |
| Fastening Type | Latch Lock |
| Features | Ground |
| Insert Material | Polyester |
| Mounting Feature | Flange |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Stainless Steel |
| Shell Size - Insert | XLR |
| Voltage Rating | 125 VAC |
Advanced Energy Industries C-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, -250V HVout, 20W, Thru-hole Mount, Regulated, I10 Interface 0 to +10 VDC Monitors/Controls, Mu Metal shield, Eared mounting flange
| Part | Connector Type | Insert Material | Fastening Type | Contact Finish - Mating | Orientation | Mounting Feature | Features | Shell Material | Contact Material | Primary Material | Applications | Voltage Rating | Current Rating (Amps) | Shell Size - Insert | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

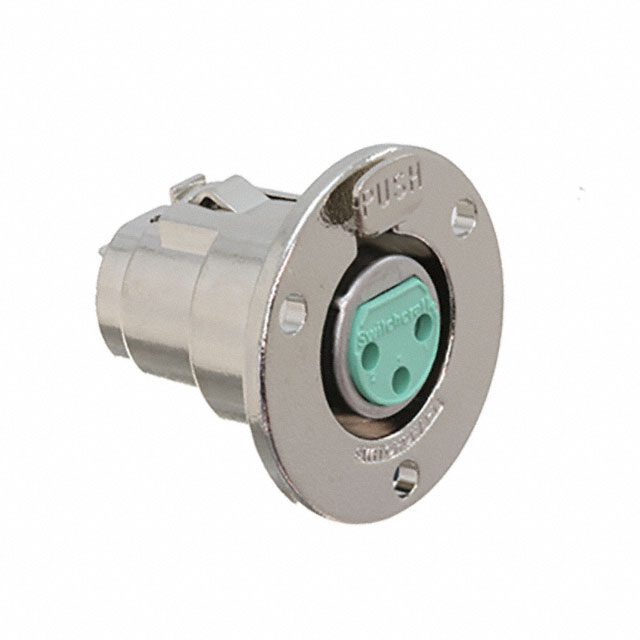

Switchcraft Inc. C3F | Female Sockets, Plug | Polyester | Latch Lock | Silver | Keyed | Flange | Ground | Stainless Steel | Phosphor Bronze | Metal | Audio, Instrumentation | 125 VAC | 15 A | XLR | Silver |
