ECG8035H-100MMX3M

Active

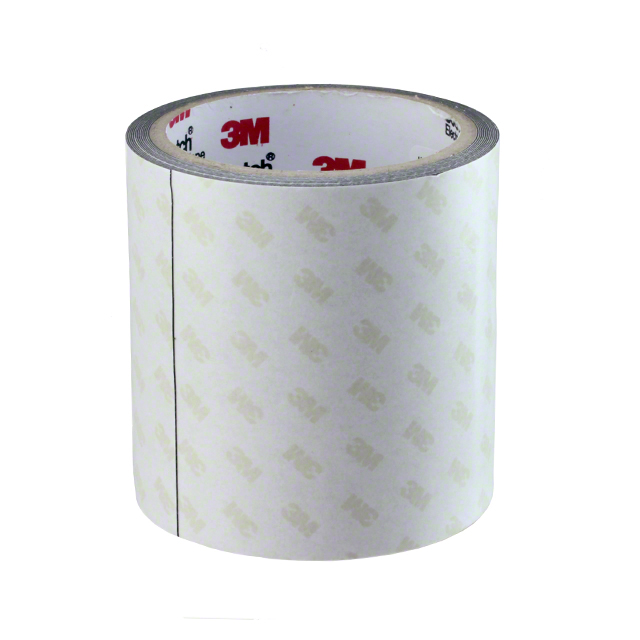

TAPE CONDUCT ADHSV 3.94"X3.3YD

Search across all available documentation for this part.

Active

TAPE CONDUCT ADHSV 3.94"X3.3YD

Technical Specifications

Parameters and characteristics for this part

Specification	ECG8035H-100MMX3M

Adhesive	Acrylic
Backing, Carrier	Polyurethane Foam
Length	10 ft
Length	3.3 yds
Length	3 m
Shelf Life	12 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	23 °C
Storage/Refrigeration Temperature	73.4 °F
Tape Type	Conductive Adhesive
Thickness	0.35 mm
Thickness	13.8 mils
Thickness	0.0138 in
Usage	Electrically Conductive
Width [y]	3.94 in
Width [y]	100 mm

TAPE CONDUCT ADHSV 3.94"X3.3YD

Part	Length	Length	Length	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Adhesive	Shelf Life	Shelf Life Start	Thickness	Thickness	Thickness	Width [y]	Width [y]	Backing, Carrier	Tape Type	Usage
3M ECG8035H-100MMX3M	10 ft	3.3 yds	3 m	23 °C	73.4 °F	Acrylic	12 Months	Date of Manufacture	0.35 mm	13.8 mils	0.0138 in	3.94 in	100 mm	Polyurethane Foam	Conductive Adhesive	Electrically Conductive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Conductive Adhesive Tape Acrylic Adhesive 3.94" (100.00mm) X 10' (3.0m) 3.3 yds
