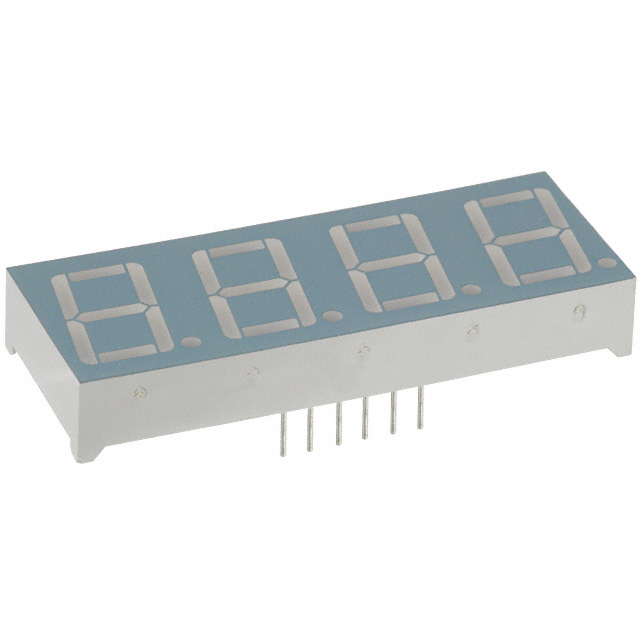

LDQ-N512RI

Active

Lumex Opto/Components Inc.

DISP 7SEG 0.56" QUAD GRN 12DIP

Deep-Dive with AI

Search across all available documentation for this part.

LDQ-N512RI

Active

Lumex Opto/Components Inc.

DISP 7SEG 0.56" QUAD GRN 12DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDQ-N512RI

Color	Green
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	3.9 mcd
Number of Characters	4
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	12-DIP
Power Dissipation (Max) [Max]	105 mW
Size / Dimension [x]	0.748 in
Size / Dimension [x]	19 mm
Size / Dimension [y]	1.98 in
Size / Dimension [y]	50.3 mm
Size / Dimension [z]	0.315 "
Size / Dimension [z]	8 mm
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Peak	565 nm

LDQ-N512 Series

DISP 7SEG 0.56" QUAD GRN 12DIP

Part	Package / Case	Package / Case	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Common Pin	Wavelength - Peak	Current - Test	Color	Millicandela Rating	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Power Dissipation (Max) [Max]	Number of Characters	Display Type	Voltage - Forward (Vf) (Typ)
Lumex Opto/Components Inc. LDQ-N512RI	15.24 mm	0.6 in	12-DIP	0.56 in	14.22 mm	Common Cathode	565 nm	10 mA	Green	3.9 mcd	0.748 in	0.315 "	19 mm	1.98 in	50.3 mm	8 mm	105 mW	4	7-Segment	2.2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LDQ-N512 Series

Display Modules - LED Character and Numeric Green 7-Segment 4 Character Common Cathode 2.2V 10mA 0.748" H x 1.980" W x 0.315" D (19.00mm x 50.30mm x 8.00mm) 12-DIP (0.600", 15.24mm)
