5300-33-RC

Active

Bourns Inc.

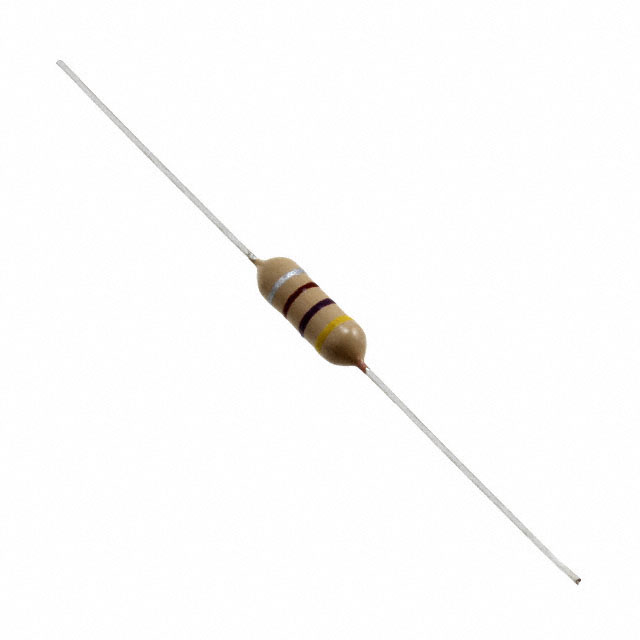

FIXED IND 470UH 240MA 3.4 OHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5300-33-RC

Active

Bourns Inc.

FIXED IND 470UH 240MA 3.4 OHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5300-33-RC

Current - Saturation (Isat)	140 mA
Current Rating (Amps)	0.24 A
DC Resistance (DCR) [Max]	3.4 Ohm
Frequency - Self Resonant	1.4 MHz
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Shielding	Unshielded
Size / Dimension [diameter]	0.16 in
Size / Dimension [diameter]	4.06 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Tolerance	10 %
Type	Wirewound, Drum Core

5300 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Type	Current - Saturation (Isat)	DC Resistance (DCR) [Max]	Package / Case	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Tolerance	Frequency - Self Resonant	Mounting Type	Current Rating (Amps)	Shielding	Material - Core	DC Resistance (DCR)	Inductance Frequency - Test
Bourns Inc. 5300-34-RC	105 ░C	-55 °C	560 µH	Drum Core Wirewound	130 mA	4.7 Ohm	Axial	0.16 in	0.5 in	12.7 mm	4.06 mm	10 %	1.3 MHz	Through Hole	0.21 A	Unshielded	Ferrite
Bourns Inc. 5300-02-RC	105 ░C	-55 °C	1.2 µH	Drum Core Wirewound	2.7 A		Axial	0.16 in	0.5 in	12.7 mm	4.06 mm	10 %	170 MHz	Through Hole	3.2 A	Unshielded	Ferrite	19 mOhm	7.96 MHz
Bourns Inc. 5300-01-RC	105 ░C	-55 °C	1 µH	Drum Core Wirewound	3 A		Axial	0.16 in	0.5 in	12.7 mm	4.06 mm	10 %	190 MHz	Through Hole	3.3 A	Unshielded	Ferrite	18 mOhm	7.96 MHz
Bourns Inc. 5300-46-RC	105 ░C	-55 °C	5.6 mH	Drum Core Wirewound	40 mA	50 Ohm	Axial	0.16 in	0.5 in	12.7 mm	4.06 mm	10 %	400 kHz	Through Hole	63 mA	Unshielded	Ferrite
Bourns Inc. 5300-43-RC	105 ░C	-55 °C	3300 µH	Drum Core Wirewound	52 mA	29 Ohm	Axial	0.16 in	0.5 in	12.7 mm	4.06 mm	10 %	530 kHz	Through Hole	0.083 A	Unshielded	Ferrite
Bourns Inc. 5300-33-RC	105 ░C	-55 °C		Drum Core Wirewound	140 mA	3.4 Ohm	Axial	0.16 in	0.5 in	12.7 mm	4.06 mm	10 %	1.4 MHz	Through Hole	0.24 A	Unshielded	Ferrite
Bourns Inc. 5300-10-RC	105 ░C	-55 °C	5.6 µH	Drum Core Wirewound	1.3 A	74 mOhm	Axial	0.16 in	0.5 in	12.7 mm	4.06 mm	10 %	64 MHz	Through Hole	1.6 A	Unshielded	Ferrite		7.96 MHz
Bourns Inc. 5300-23-RC	105 ░C	-55 °C	68 µH	Drum Core Wirewound	370 mA	530 mOhm	Axial	0.16 in	0.5 in	12.7 mm	4.06 mm	10 %	4.3 MHz	Through Hole	610 mA	Unshielded	Ferrite
Bourns Inc. 5300-13-RC	105 ░C	-55 °C	10 µH	Drum Core Wirewound	970 mA	95 mOhm	Axial	0.16 in	0.5 in	12.7 mm	4.06 mm	10 %	25 MHz	Through Hole	1.5 A	Unshielded	Ferrite
Bourns Inc. 5300-21-RC	105 ░C	-55 °C	47 µH	Drum Core Wirewound	430 mA		Axial	0.16 in	0.5 in	12.7 mm	4.06 mm	10 %	6 MHz	Through Hole	760 mA	Unshielded	Ferrite	350 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.31
		10	$ 1.11
		25	$ 1.01
		50	$ 0.95
		100	$ 0.79
		250	$ 0.73
		500	$ 0.69
		1000	$ 0.63
		2500	$ 0.60

Description

General part information

5300 Series

470 µH Unshielded Drum Core, Wirewound Inductor 240 mA 3.4Ohm Max Axial
