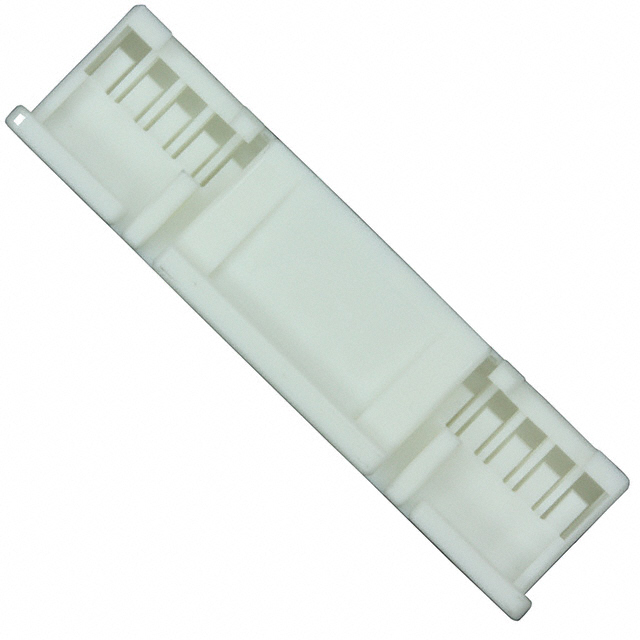

PUDP-34V-S

Active

JST Sales America Inc.

CONN RCPT HSG 34POS 2.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 34POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	PUDP-34V-S

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	34
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

Part	Pitch [x]	Pitch [x]	Number of Positions	Contact Termination	Mounting Type	Connector Type	Color	Fastening Type	Insulation Material	Note	Row Spacing	Row Spacing	Contact Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]
JST Sales America Inc. PUDP-34V-S	0.079 in	2 mm	34	Crimp	Free Hanging (In-Line)	Receptacle	Natural	Latch Lock	Polybutylene Terephthalate (PBT)	Contacts Not Included	2 mm	0.079 in	Female Socket	2	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
