887-042-541-803

Active

EDAC Inc.

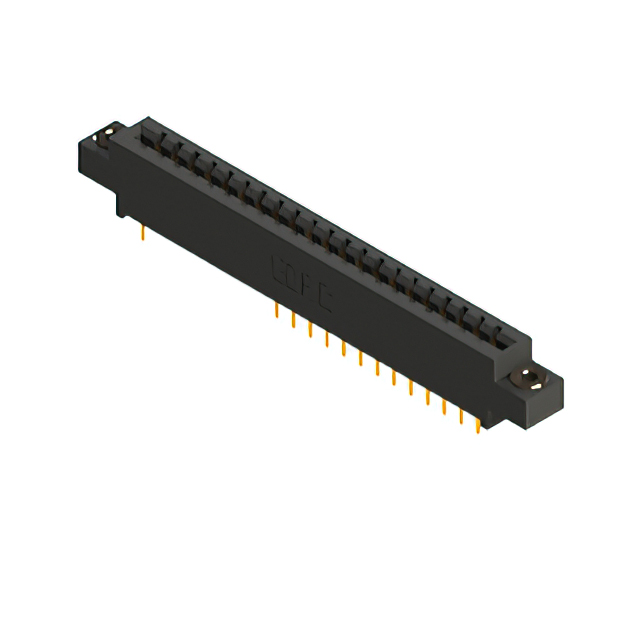

CONN EDGE DUAL FMALE 42POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

887-042-541-803

Active

EDAC Inc.

CONN EDGE DUAL FMALE 42POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-042-541-803

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	42
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

887-042 Series

...

Part	Contact Finish	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Color	Contact Material	Read Out	Material - Insulation	Termination Rows	Termination	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Rows	Mounting Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Flange Feature	Flange Feature	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 887-042-523-612	Gold	0.156 in	3.96 mm	42	Black	Copper Alloy	Single	Polyphenylene Sulfide (PPS)	1	Solder	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Female	1	Through Hole	42	125 °C	-40 °C	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Non Specified - Single Edge
EDAC Inc. 887-042-541-803	Gold	0.156 in	3.96 mm		Black	Copper Alloy	Dual	Polyphenylene Sulfide (PPS)	2	Wire Wrap	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Female	2	Through Hole	42	125 °C	-40 °C	Floating Bobbin Top Mount Opening			Non Specified - Dual Edge	2.95 mm	0.116 in
EDAC Inc. 887-042-524-204	Gold	0.156 in	3.96 mm		Black	Copper Alloy	Dual	Polyphenylene Sulfide (PPS)	2	Solder	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Female	2	Through Hole	42	125 °C	-40 °C	Flush Mount Top Opening Unthreaded			Non Specified - Dual Edge	3.96 mm	0.156 in
EDAC Inc. 887-042-560-208	Gold	0.156 in	3.96 mm		Black	Copper Alloy	Dual	Polyphenylene Sulfide (PPS)	2	Solder	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Female	2	Board Edge Straddle Mount	42	125 °C	-40 °C	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge			Card Extender
EDAC Inc. 887-042-541-808	Gold	0.156 in	3.96 mm		Black	Copper Alloy	Dual	Polyphenylene Sulfide (PPS)	2	Wire Wrap	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Female	2	Through Hole	42	125 °C	-40 °C	4-40 Threaded Insert Top Mount Opening			Non Specified - Dual Edge
EDAC Inc. 887-042-540-803	Gold	0.156 in	3.96 mm		Black	Copper Alloy	Dual	Polyphenylene Sulfide (PPS)	2	Wire Wrap	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Female	2	Through Hole	42	125 °C	-40 °C	Floating Bobbin Top Mount Opening			Non Specified - Dual Edge	2.95 mm	0.116 in
EDAC Inc. 887-042-559-803	Gold	0.156 in	3.96 mm		Black	Copper Alloy	Dual	Polyphenylene Sulfide (PPS)	2	Solder	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Female	2	Through Hole Right Angle	42	125 °C	-40 °C	Floating Bobbin Top Mount Opening			Non Specified - Dual Edge	2.95 mm	0.116 in
EDAC Inc. 887-042-521-203	Gold	0.156 in	3.96 mm		Black	Copper Alloy	Dual	Polyphenylene Sulfide (PPS)	2	Solder	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Female	2	Through Hole	42	125 °C	-40 °C	Floating Bobbin Flush Mount			Non Specified - Dual Edge	2.95 mm	0.116 in
EDAC Inc. 887-042-544-803	Gold	0.156 in	3.96 mm		Black	Copper Alloy	Dual	Polyphenylene Sulfide (PPS)	2	Wire Wrap	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Female	2	Through Hole	42	125 °C	-40 °C	Floating Bobbin Top Mount Opening			Non Specified - Dual Edge	2.95 mm	0.116 in
EDAC Inc. 887-042-521-607	Gold	0.156 in	3.96 mm	42	Black	Copper Alloy	Single	Polyphenylene Sulfide (PPS)	1	Solder	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Female	1	Through Hole	42	125 °C	-40 °C	M3 Threaded Insert Top Mount Opening			Non Specified - Single Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 77.95
Newark	Each	1	$ 93.55
		100	$ 62.32
		250	$ 47.05
		500	$ 38.59
		1000	$ 31.88

Description

General part information

887-042 Series

42 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
