7838A 0602000

Active

Belden Inc.

2 FS PR #22 PP/FPE PVC PARA

Search across all available documentation for this part.

Active

Belden Inc.

2 FS PR #22 PP/FPE PVC PARA

Technical Specifications

Parameters and characteristics for this part

Specification	7838A 0602000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.13 mm
Jacket (Insulation) Diameter [diameter]	0.202 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length [x]	609.6 m
Length [x]	2000 ft
Number of Conductors	4
Shield Coverage	100 %
Shield Material	Polyester, Aluminum
Shield Type	Foil
Usage	Network
Voltage	300 V
Wire Gauge	22 AWG

Part	Number of Conductors	Shield Material	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Conductor Material	Conductor Strand	Shield Coverage	Jacket Color	Wire Gauge	Cable Type	Shield Type	Features	Usage	Conductor Insulation	Length [x]	Length [x]	Length	Length
Belden Inc. 7838A 0605000	4	Aluminum Polyester	300 V	5.13 mm	0.202 in	Poly-Vinyl Chloride (PVC)	Copper Tinned	Solid	100 %	Chrome	22 AWG	Multi-Pair	Foil	Drain Wire	Network	Foam Polyethylene (FPE)
Belden Inc. 7838A 0602000	4	Aluminum Polyester	300 V	5.13 mm	0.202 in	Poly-Vinyl Chloride (PVC)	Copper Tinned	Solid	100 %	Chrome	22 AWG	Multi-Pair	Foil	Drain Wire	Network	Foam Polyethylene (FPE)	609.6 m	2000 ft
Belden Inc. 7838A 0601000	4	Aluminum Polyester	300 V	5.13 mm	0.202 in	Poly-Vinyl Chloride (PVC)	Copper Tinned	Solid	100 %	Chrome	22 AWG	Multi-Pair	Foil	Drain Wire	Network	Foam Polyethylene (FPE)			1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	2000	$ 1.20

General part information

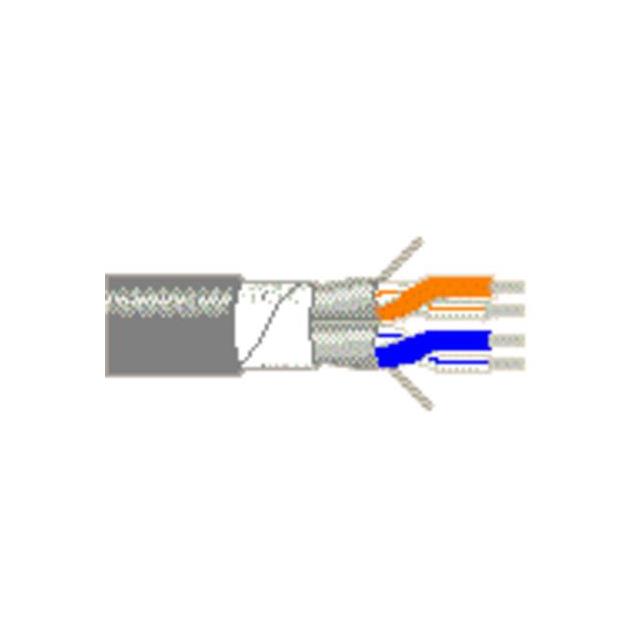

4 (2 Pair Twisted) Conductor Multi-Pair Cable Chrome 22 AWG Foil 2000.0' (609.6m)
