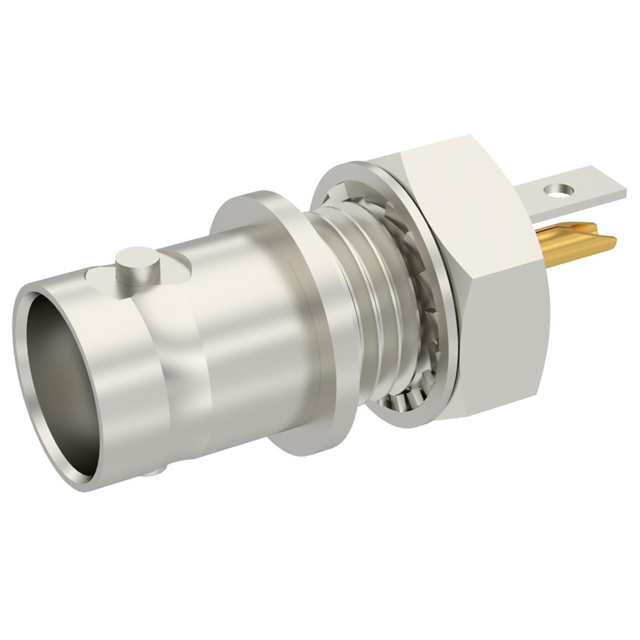

BNC / INSULATED BULKHEAD JACK

Deep-Dive with AI

Search across all available documentation for this part.

R141574161

Active

Radiall USA, Inc.

BNC / INSULATED BULKHEAD JACK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R141574161

Body Material	Polyphenylene Ether, Modified (mPPE)
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polyphenylene Ether, Modified (mPPE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-35 °C
Shield Termination	Solder Tag
Voltage Rating	500 V

R14157 Series

Part	Fastening Type	Impedance	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Connector Type	Center Contact Plating	Connector Style	Housing Color	Dielectric Material	Frequency - Max [Max]	Body Material	Shield Termination	Voltage Rating	Number of Ports	Center Contact Material	Body Finish	Mating Cycles	Includes	Features
Radiall USA, Inc. R141574161	Bayonet Lock	50 Ohms	Solder Cup	-35 °C	70 °C	Bulkhead - Rear Side Nut	Female Socket Jack	Gold	BNC	Silver	Polyphenylene Ether Modified (mPPE)	1.5 GHz	Polyphenylene Ether Modified (mPPE)	Solder Tag	500 V	1	Brass
Radiall USA, Inc. R141572000	Bayonet Lock	50 Ohms	Solder Cup	-65 ░C	165 °C	Bulkhead - Rear Side Nut	Female Socket Jack	Gold	BNC	Silver	Polytetrafluoroethylene (PTFE)	4 GHz	Brass	Solder Tag	500 V	1	Beryllium Copper	Nickel	500	1 Connector 1 Lockwasher 1 Nut
Radiall USA, Inc. R141572100	Bayonet Lock	50 Ohms	Solder Cup	-65 ░C	165 °C	Bulkhead - Rear Side Nut	Female Socket Jack	Gold	BNC	Silver	Polytetrafluoroethylene (PTFE)	4 GHz	Brass	Solder	500 V	1	Beryllium Copper	Nickel	500
Radiall USA, Inc. R141574000	Bayonet Lock	50 Ohms	Solder Cup	-65 ░C	165 °C	Bulkhead - Rear Side Nut	Female Socket Jack	Gold	BNC	Silver	Polyphenylene Ether Modified (mPPE)	4 GHz	Polyphenylene Ether Modified (mPPE)	Solder Tag	500 V	1	Beryllium Copper		500
Radiall USA, Inc. R141575110
Radiall USA, Inc. R141574000W	Bayonet Lock	50 Ohms	Solder Cup	-65 ░C	165 °C	Bulkhead - Rear Side Nut	Female Socket Jack	Gold	BNC	Silver	Polyphenylene Ether Modified (mPPE)	4 GHz	Polyphenylene Ether Modified (mPPE)	Solder Tag	500 V	1	Beryllium Copper		500
Radiall USA, Inc. R141572000W	Bayonet Lock	50 Ohms	Solder Cup	-65 ░C	165 °C	Bulkhead - Rear Side Nut	Female Socket Jack	Gold	BNC	Silver	Polytetrafluoroethylene (PTFE)	4 GHz	Brass	Solder Tag	500 V	1	Beryllium Copper	Nickel			Extended Insulation
