SSI-LXH387GD

Active

Lumex Opto/Components Inc.

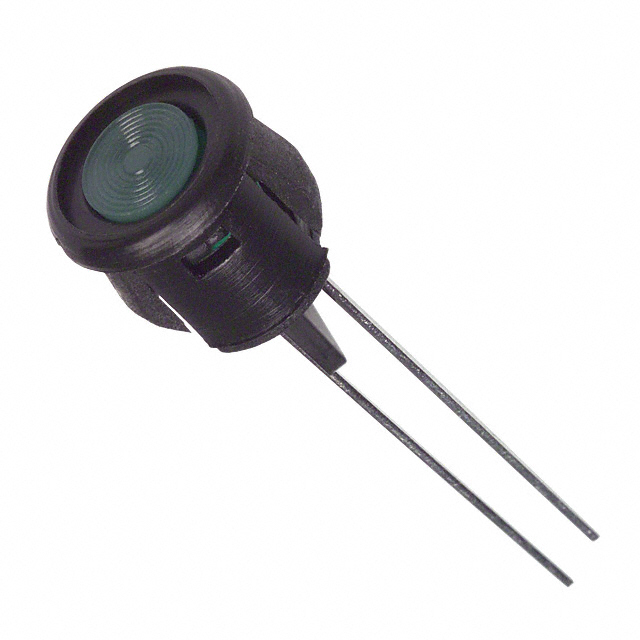

LED 4.9MM FLAT TOP GREEN PANELMT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 4.9MM FLAT TOP GREEN PANELMT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green Fresnel 120° 2.2V 25mA

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	SSI-LXH387GD	SSI-LXH387 Series

Current	25 mA	25 - 30 mA
Current	-	25 mA
Current	-	25 mA
Lamp Color	Green	Red, Yellow, Green, Blue
Lens Color	Green	Red, Yellow, White, Green, Blue
Lens Size	-	T-1 3/4
Lens Size	-	5 mm
Lens Size [diameter]	5 mm Dia	5 mm Dia
Lens Style	-	Round with Domed Top
Lens Transparency	Fresnel	Fresnel, Diffused
Millicandela Rating	10 mcd	10 - 60 mcd
Millicandela Rating	-	4 mcd
Millicandela Rating	-	10 mcd
Panel Cutout Dimensions [custom]	0.31 in	0.31 in
Panel Cutout Dimensions [custom]	7.87 mm	7.87 mm
Panel Cutout Shape	Round	Round
Termination Style	-	PC Pin
Type	LED	LED
Viewing Angle	120 °	120 °
Voltage	2.2 V	1.7 - 3.5 V
Wavelength - Peak	565 nm	565 - 700 nm

LED 4.9MM FLAT TOP SUP RED PNLMT

Part	Wavelength - Peak	Lamp Color	Voltage	Viewing Angle	Lens Color	Type	Lens Transparency	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Lens Size [diameter]	Current	Millicandela Rating	Panel Cutout Shape	Lens Size	Lens Size	Millicandela Rating [custom]	Millicandela Rating [custom]	Current [custom]	Current [custom]	Termination Style	Lens Style
Lumex Opto/Components Inc. SSI-LXH387SRD	660 nm	Red	1.7 V	120 °	Red	LED	Fresnel	0.31 in	7.87 mm	5 mm Dia	30 mA	60 mcd	Round
Lumex Opto/Components Inc. SSI-LXH387SID-150	636 nm	Red	2 V	120 °	Red	LED	Diffused	0.31 in	7.87 mm			60 mcd	Round	T-1 3/4	5 mm
Lumex Opto/Components Inc. SSI-LXH387YD	585 nm	Yellow	2.1 V	120 °	Yellow	LED	Fresnel	0.31 in	7.87 mm	5 mm Dia	30 mA	10 mcd	Round
Lumex Opto/Components Inc. SSI-LXH387HGW	565 nm, 700 nm	Green, Red	2 V, 2.2 V	120 °	White	LED	Diffused	0.31 in	7.87 mm	5 mm Dia			Round			4 mcd	10 mcd	25 mA	25 mA
Lumex Opto/Components Inc. SSI-LXH387GD	565 nm	Green	2.2 V	120 °	Green	LED	Fresnel	0.31 in	7.87 mm	5 mm Dia	25 mA	10 mcd	Round
Lumex Opto/Components Inc. SSI-LXH387SUGD		Green	2.2 V	120 °	Green	LED	Diffused	0.31 in	7.87 mm			60 mcd	Round	T-1 3/4	5 mm					PC Pin
Lumex Opto/Components Inc. SSI-LXH387USBD-150		Blue	3.5 V	120 °	Blue	LED	Diffused	0.31 in	7.87 mm			40 mcd	Round	T-1 3/4	5 mm						Round with Domed Top
Lumex Opto/Components Inc. SSI-LXH387ID	635 nm	Red	2 V	120 °	Red	LED	Fresnel	0.31 in	7.87 mm	5 mm Dia	30 mA	10 mcd	Round
