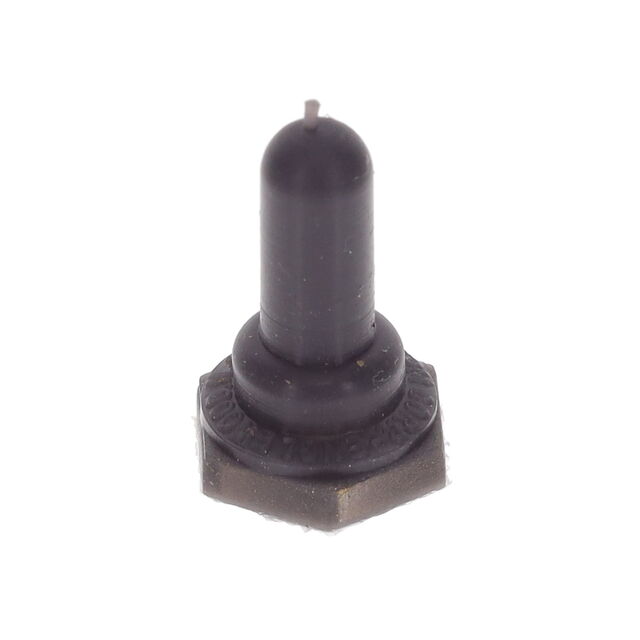

SWITCH SEALING BOOT, TOGGLE SWITCHES
Search across all available documentation for this part.
SWITCH SEALING BOOT, TOGGLE SWITCHES
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
General part information
SWITCH SEALING BOOT, TOGGLE SWITCHES
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | N5030S RFI | N5030 Series |
|---|---|---|
| Actuator Diameter [diameter] | 1.57 mm | 1.57 - 2.64 mm |
| Actuator Diameter [diameter] | 0.062 in | 0.062 - 0.104 in |
| Color | Gray | Gray, Black, Red |
| Features | Shielded | Shielded |
| For Use With/Related Products | Multiple Series | Multiple Series |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Material | Silicone Rubber | Silicone Rubber |
| Mounting Feature | Front of Panel | Front of Panel |
| Operating Temperature [Max] | 204 °C | 204 °C |
| Operating Temperature [Min] | -70 °C | -70 °C |
| Size / Dimension [z] | 15.09 mm | 10.72 - 15.09 mm |
| Size / Dimension [z] | 0.594 in | 0.422 - 0.594 in |
| Thread Size | 1/4-40 NS-2B | 1/4-40 NS-2B |
| Type | Full Boot, Toggle | Full Boot, Toggle |
SWITCH SEALING BOOT, TOGGLE SWITCHES
| Part | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Size / Dimension [z] | Size / Dimension [z] | Type | Mounting Feature | Features | Thread Size | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | For Use With/Related Products | Material | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APM HEXSEAL N5030S RFI | 1.57 mm | 0.062 in | 15.09 mm | 0.594 in | Full Boot, Toggle | Front of Panel | Shielded | 1/4-40 NS-2B | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Silicone Rubber | Gray |
APM HEXSEAL N5030L 17 | 1.57 mm | 0.062 in | 12.7 mm | 0.5 in | Full Boot, Toggle | Front of Panel | 1/4-40 NS-2B | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Silicone Rubber | Black | |
APM HEXSEAL N5030L 1 | 1.57 mm | 0.062 in | 12.7 mm | 0.5 in | Full Boot, Toggle | Front of Panel | 1/4-40 NS-2B | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Silicone Rubber | Gray | |
APM HEXSEAL N5030L 53 | 1.57 mm | 0.062 in | 12.7 mm | 0.5 in | Full Boot, Toggle | Front of Panel | 1/4-40 NS-2B | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Silicone Rubber | Red | |
APM HEXSEAL N5030S 1 | 1.57 mm | 0.062 in | 15.09 mm | 0.594 in | Full Boot, Toggle | Front of Panel | 1/4-40 NS-2B | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Silicone Rubber | Gray | |
APM HEXSEAL N5030L RFI 2 | 1.57 mm | 0.062 in | 12.7 mm | 0.5 in | Full Boot, Toggle | Front of Panel | Shielded | 1/4-40 NS-2B | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Silicone Rubber | Gray |
APM HEXSEAL N5030 1 | 2.64 mm | 0.104 in | 10.72 mm | 0.422 in | Full Boot, Toggle | Front of Panel | 1/4-40 NS-2B | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Silicone Rubber | Gray |
