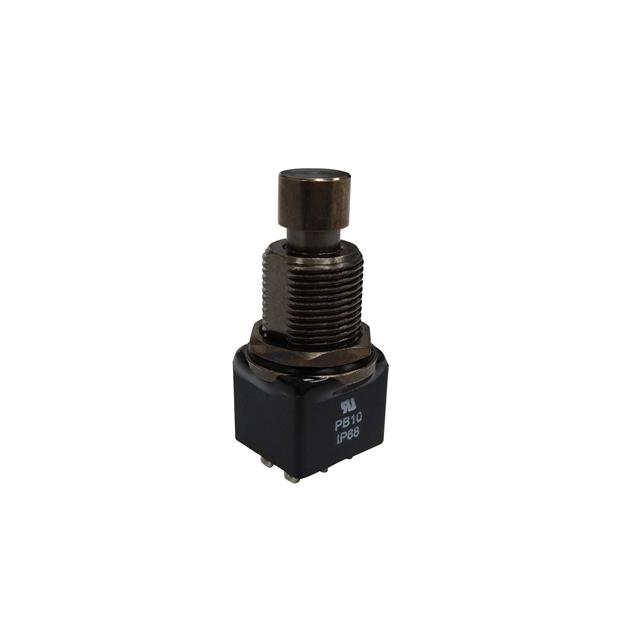

Specification	SW-PB10-BAA1QE-4

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating	6 A
Electrical Life (Cycles)	50000
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Mounting Type	Rear, Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Switch Function	On-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

SW-PB10 Series

Part	Electrical Life (Cycles)	Type	Current Rating	Color - Actuator/Cap	Actuator Marking	Circuit	Termination Style	Voltage Rating - AC	Voltage Rating - DC	Mounting Type	Switch Function	Operating Temperature (Max)	Operating Temperature (Min)	Ingress Protection IP Rating	Ingress Protection Description	Actuator Type
Adam Tech SW-PB10-BAA1QE-4	50000	Standard	6 A	Black	No Marking	DPDT	Solder Lug	125 V	28 V	Panel Mount Rear	On-On	85 °C	-30 °C	IP68	Dust Tight Waterproof	Button Round
