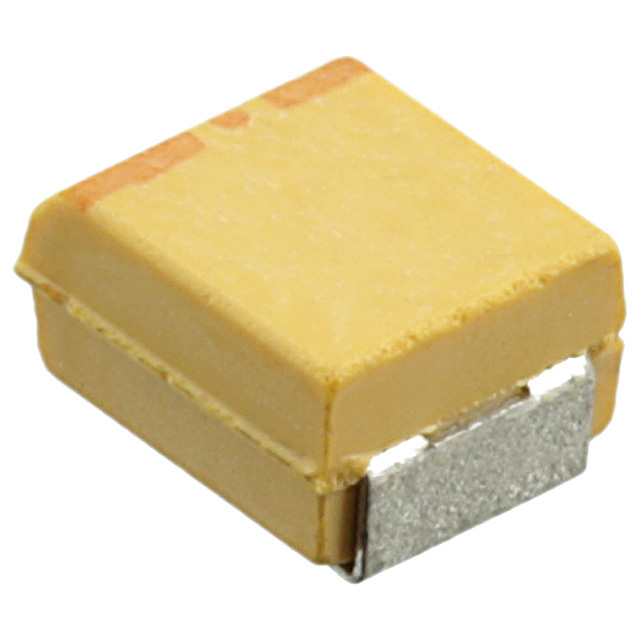

T494B334M050AT

Active

KEMET

CAP TANT 0.33UF 20% 50V 1411

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T494B334M050AT

T494B334M050AT

Active

KEMET

CAP TANT 0.33UF 20% 50V 1411

Deep-Dive with AI

DocumentsDatasheet T494B334M050AT

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T494B334M050AT

Capacitance	0.33 µF
ESR (Equivalent Series Resistance)	2.5 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	B
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1411
Package / Case	3528 Metric
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	50 VDC

T494B Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Manufacturer Size Code	Mounting Type	ESR (Equivalent Series Resistance)	Features	Lifetime @ Temp.	Voltage - Rated	Package / Case	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Capacitance	Tolerance	Type
KEMET T494B226K016AT	-55 °C	125 °C	B	Surface Mount	1 Ohms	General Purpose	2000 Hrs	16 V	1411	3528 Metric	2.1 mm	0.083 "	0.11 in	2.8 mm	0.138 "	3.5 mm	22 µF	10 %	Molded
KEMET T494B685K010AT	-55 °C	125 °C	B	Surface Mount	1.2 Ohm	General Purpose	2000 Hrs	10 V	1411	3528 Metric	2.1 mm	0.083 "	0.11 in	2.8 mm	0.138 "	3.5 mm	6.8 ÁF	10 %	Molded
KEMET T494B156K025AT	-55 °C	125 °C	B	Surface Mount	3 Ohm	General Purpose	2000 Hrs	25 VDC	1411	3528 Metric	2.1 mm	0.083 "	0.11 in	2.8 mm	0.138 "	3.5 mm	15 µF	10 %	Molded
KEMET T494B105M025AT	-55 °C	125 °C	B	Surface Mount	2 Ohms	General Purpose	2000 Hrs	25 VDC	1411	3528 Metric	2.1 mm	0.083 "	0.11 in	2.8 mm	0.138 "	3.5 mm	1 µF	20 %	Molded
KEMET T494B685K016AT	-55 °C	125 °C	B	Surface Mount	1200 mOhm	General Purpose	2000 Hrs	16 V	1411	3528 Metric	2.1 mm	0.083 "	0.11 in	2.8 mm	0.138 "	3.5 mm	6.8 ÁF	10 %	Molded
KEMET T494B226K010AT	-55 °C	125 °C	B	Surface Mount	700 mOhm	General Purpose	2000 Hrs	10 V	1411	3528 Metric	2.1 mm	0.083 "	0.11 in	2.8 mm	0.138 "	3.5 mm	22 µF	10 %	Molded
KEMET T494B476K006AT	-55 °C	125 °C	B	Surface Mount	500 mOhms	General Purpose	2000 Hrs	6.3 V	1411	3528 Metric	2.1 mm	0.083 "	0.11 in	2.8 mm	0.138 "	3.5 mm	47 µF	10 %	Molded
KEMET T494B334M050AT	-55 °C	125 °C	B	Surface Mount	2.5 Ohm	General Purpose	2000 Hrs	50 VDC	1411	3528 Metric	2.1 mm	0.083 "	0.11 in	2.8 mm	0.138 "	3.5 mm	0.33 µF	20 %	Molded
KEMET T494B336M006AT	-55 °C	125 °C	B	Surface Mount	600 mOhm	General Purpose	2000 Hrs	6.3 V	1411	3528 Metric	2.1 mm	0.083 "	0.11 in	2.8 mm	0.138 "	3.5 mm	33 ÁF	20 %	Molded
KEMET T494B336M010AT	-55 °C	125 °C	B	Surface Mount	6 Ohm	General Purpose	2000 Hrs	10 V	1411	3528 Metric	2.1 mm	0.083 "	0.11 in	2.8 mm	0.138 "	3.5 mm	33 ÁF	20 %	Molded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.05
		10	$ 0.76
		50	$ 0.66
		100	$ 0.54
		500	$ 0.44
		1000	$ 0.38
	Digi-Reel®	1	$ 1.05
		10	$ 0.76
		50	$ 0.66
		100	$ 0.54
		500	$ 0.44
		1000	$ 0.38
	Tape & Reel (TR)	2000	$ 0.30

Description

General part information

T494B Series

0.33 µF Molded Tantalum Capacitors 50 V 1411 (3528 Metric) 2.5Ohm @ 100kHz
