C14610R0245061

Active

Amphenol Tuchel Industrial

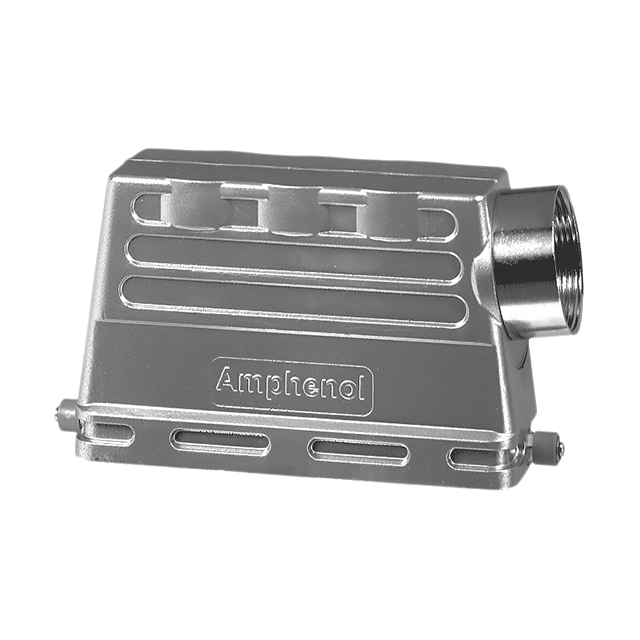

CONN HOOD SIDE ENTRY SZE24 M32

Deep-Dive with AI

Search across all available documentation for this part.

C14610R0245061

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE24 M32

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C14610R0245061

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E24
Size / Dimension [x]	4.724 "
Size / Dimension [x]	120 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.441 "
Size / Dimension [z]	62 mm
Style	Side Entry
Thread Size	M32

C14610R024 Series

Part	Connector Type	Style	Ingress Protection	Housing Material	Size	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Lock Location	Thread Size	Features
Amphenol Tuchel Industrial C14610R0246038	Hood	Top Entry	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	E24	100 °C	-40 °C	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Locking Clip (2) on Hood
Amphenol Tuchel Industrial C14610R0246508	Hood	Top Entry	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	E24	100 °C	-40 °C	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Locking Clip (2) on Base Bottom	M25
Amphenol Tuchel Industrial C14610R0245061	Hood	Side Entry	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	E24	100 °C	-40 °C	120 mm	4.724 "	43 mm	62 mm	1.693 in	2.441 "	Locking Clip (1) on Base Bottom	M32
Amphenol Tuchel Industrial C14610R0246068	Hood	Top Entry	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	E24	100 °C	-40 °C	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Locking Clip (1) on Base Bottom	M32
Amphenol Tuchel Industrial C14610R0245568	Hood	Side Entry	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	E24	100 °C	-40 °C	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Locking Clip (1) on Base Bottom	M25
Amphenol Tuchel Industrial C14610R0246008	Hood	Top Entry	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	E24	100 °C	-40 °C	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Locking Clip (2) on Base Bottom	M32
Amphenol Tuchel Industrial C14610R0248523	Hood - Coupling	Bottom Entry	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	E16	100 °C	-40 °C							Locking Clip (2) on Hood Top	M25	Cable to Cable
Amphenol Tuchel Industrial C14610R0246568	Hood	Top Entry	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	E24	100 °C	-40 °C	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Locking Clip (1) on Base Bottom	M25
Amphenol Tuchel Industrial C14610R0246061	Hood	Top Entry	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	E24	100 °C	-40 °C	120 mm	4.724 "	43 mm	62 mm	1.693 in	2.441 "	Locking Clip (1) on Base Bottom	M32
Amphenol Tuchel Industrial C14610R0246078	Hood	Top Entry	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	E24	100 °C	-40 °C	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Locking Clip (1) on Base Bottom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	45	$ 22.50

Description

General part information

C14610R024 Series

Hood Connector Side Entry M32 E24 IP65 - Dust Tight, Water Resistant

Documents

Technical documentation and resources

No documents available
