HLCD-20-06.00-TR-TR-2

Active

Samtec Inc.

CBL ASSM SELF-MATE 40POS 6" HDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HLCD-20-10.00-BL-BLS-1

HLCD-20-06.00-TR-TR-2

Active

Samtec Inc.

CBL ASSM SELF-MATE 40POS 6" HDR

Deep-Dive with AI

DocumentsDatasheet HLCD-20-10.00-BL-BLS-1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLCD-20-06.00-TR-TR-2

Cable Termination	IDC
Color	Ribbon, Blue
Connector Type	Self Mating, Non-Gendered, Hermaphroditic to Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.01 in
Pitch - Cable	0.25 mm
Pitch - Connector	0.02 in
Pitch - Connector	0.5 mm
Shielding	Shielded

HLCD-20 Series

Part	Color	Cable Termination	Number of Rows	Number of Positions	Connector Type	Shielding	Pitch - Cable	Pitch - Cable	Contact Finish	Length	Length	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length [x]	Length [x]
Samtec Inc. HLCD-20-12.00-TD-TH-2	Blue Ribbon	IDC	2	40	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	Shielded	0.01 in	0.25 mm	Gold	1 ft	304.8 mm	0.02 in	0.5 mm	10 Áin	0.25 Ám
Samtec Inc. HLCD-20-06.00-TR-TR-2	Blue Ribbon	IDC	2	40	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	Shielded	0.01 in	0.25 mm	Gold		152.4 mm	0.02 in	0.5 mm	10 Áin	0.25 Ám	6 "	0.5 '
Samtec Inc. HLCD-20-06.00-TR-TR-1	Blue Ribbon	IDC	2	40	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	Shielded	0.01 in	0.25 mm	Gold		152.4 mm	0.02 in	0.5 mm	10 Áin	0.25 Ám	6 "	0.5 '
Samtec Inc. HLCD-20-40.00-TD-TH-1	Blue Ribbon	IDC	2	40	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	Shielded	0.01 in	0.25 mm	Gold			0.02 in	0.5 mm	10 Áin	0.25 Ám			1.02 m	3.33 '
Samtec Inc. HLCD-20-12.00-TR-TR-2	Blue Ribbon	IDC	2	40	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	Shielded	0.01 in	0.25 mm	Gold	1 ft	304.8 mm	0.02 in	0.5 mm	10 Áin	0.25 Ám
Samtec Inc. HLCD-20-40.00-TD-TH-2	Blue Ribbon	IDC	2	40	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	Shielded	0.01 in	0.25 mm	Gold			0.02 in	0.5 mm	10 Áin	0.25 Ám			1.02 m	3.33 '
Samtec Inc. HLCD-20-06.00-TD-TH-2	Blue Ribbon	IDC	2	40	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	Shielded	0.01 in	0.25 mm	Gold		152.4 mm	0.02 in	0.5 mm	10 Áin	0.25 Ám	6 "	0.5 '
Samtec Inc. HLCD-20-12.00-TD-TH-1	Blue Ribbon	IDC	2	40	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	Shielded	0.01 in	0.25 mm	Gold	1 ft	304.8 mm	0.02 in	0.5 mm	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 65.84

Description

General part information

HLCD-20 Series

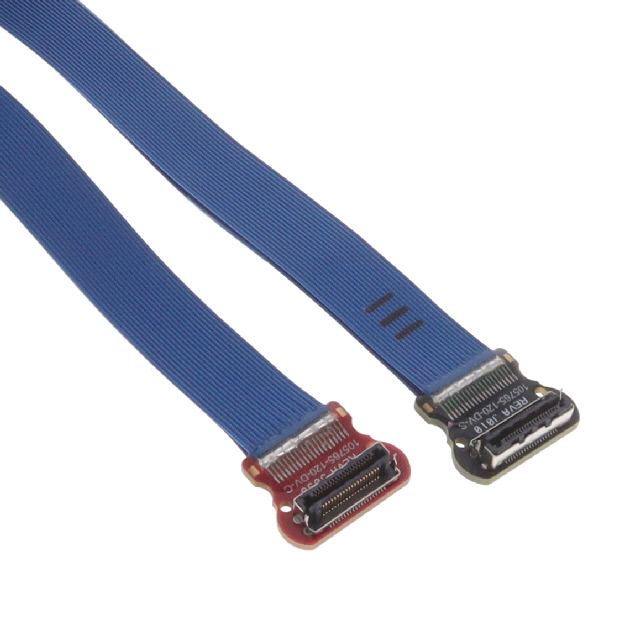

40 Position Cable Assembly Rectangular Self Mating, Non-Gendered, Hermaphroditic to Self Mating, Non-Gendered, Hermaphroditic 0.500' (152.40mm, 6.00")
