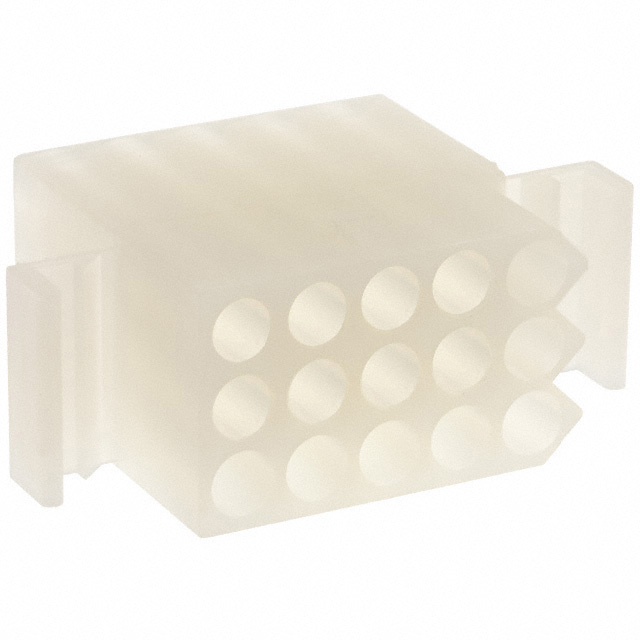

0003091154

Obsolete

Molex

CONN RCPT HSG 15POS 5.03MM

Deep-Dive with AI

Search across all available documentation for this part.

0003091154

Obsolete

Molex

CONN RCPT HSG 15POS 5.03MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0003091154

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male or Female
Fastening Type	Locking Ramp
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	15
Number of Rows	3
Pitch [x]	0.198 in
Pitch [x]	5.03 mm
Row Spacing	0.198 in
Row Spacing	5.03 mm

000309 Series

Part	Insulation Material	Number of Rows	Mounting Type	Note	Pitch [x]	Pitch [x]	Connector Type	Contact Type	Contact Termination	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Fastening Type	Row Spacing	Row Spacing
Molex 0003091042	Polyamide (PA66) Nylon 6/6	1	Free Hanging (In-Line)	Contacts Not Included	0.198 in	5.03 mm	Receptacle	Male or Female	Crimp	Natural	105 ░C	-55 °C	4	Locking Ramp
Molex 0003091049	Polyamide (PA66) Nylon 6/6	2	Free Hanging (In-Line)	Contacts Not Included	0.198 in	5.03 mm	Receptacle	Male or Female	Crimp	Natural	105 ░C	-40 °C	4	Locking Ramp	0.198 in	5.03 mm
Molex 0003091064	Polyamide (PA66) Nylon 6/6	3	Free Hanging (In-Line)	Contacts Not Included	0.198 in	5.03 mm	Receptacle	Male or Female	Crimp	Natural	105 ░C	-40 °C	6	Locking Ramp	0.198 in	5.03 mm
Molex 0003091037		1	Free Hanging (In-Line)	Contacts Not Included	0.198 in	5.03 mm	Receptacle	Female Socket	Crimp	Natural				Latch Lock
Molex 0003091094	Polyamide (PA66) Nylon 6/6	3	Free Hanging (In-Line)	Contacts Not Included	0.198 in	5.03 mm	Receptacle	Male or Female	Crimp	Natural	105 ░C	-40 °C	9	Locking Ramp	0.198 in	5.03 mm
Molex 0003092091		3	Panel Mount Snap-In	Contacts Not Included	0.198 in	5.03 mm	Plug	Male or Female	Crimp	Natural			9	Detent Lock	0.198 in	5.03 mm
Molex 0003092122	Polyamide (PA66) Nylon 6/6	3	Panel Mount Snap-In	Contacts Not Included	0.198 in	5.03 mm	Plug	Male or Female	Crimp	Natural	105 ░C	-40 °C	12	Detent Lock	0.198 in	5.03 mm
Molex 0003091063	Polyamide (PA66) Nylon 6/6	2	Free Hanging (In-Line)	Contacts Not Included	0.198 in	5.03 mm	Receptacle	Male or Female	Crimp	Natural	105 ░C	-55 °C	6		0.198 in	5.03 mm
Molex 0003091154		3	Panel Mount Snap-In	Contacts Not Included	0.198 in	5.03 mm	Receptacle	Male or Female	Crimp	Natural			15	Locking Ramp	0.198 in	5.03 mm
Molex 0003091173	Polyamide (PA66) Nylon 6/6	1	Free Hanging (In-Line)	Contacts Not Included	0.198 in	5.03 mm	Receptacle	Male or Female	Crimp	Natural	105 ░C	-40 °C		Detent Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

000309 Series

15 Rectangular Connectors - Housings Receptacle Natural 0.198" (5.03mm)
