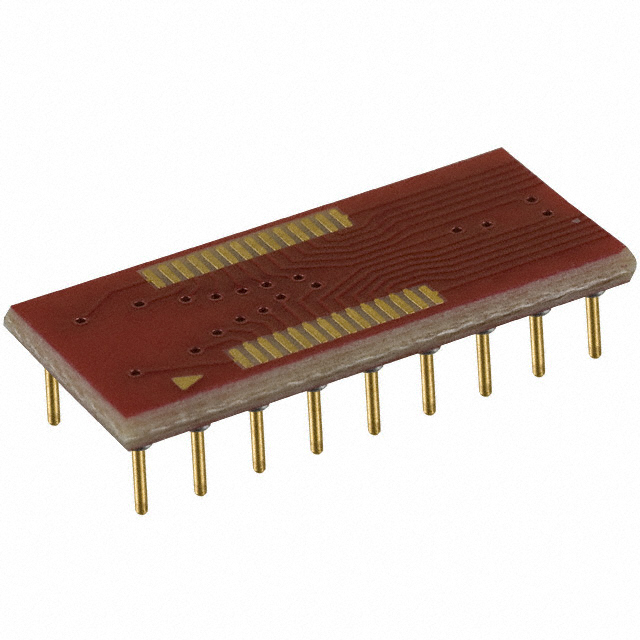

18-351000-11-RC

Active

Aries Electronics

SOCKET ADAPTER SSOP TO 18DIP 0.3

Search across all available documentation for this part.

Active

Aries Electronics

SOCKET ADAPTER SSOP TO 18DIP 0.3

Technical Specifications

Parameters and characteristics for this part

Specification	18-351000-11-RC

Board Material	FR4 Epoxy Glass
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Material - Post [custom]	Brass
Convert From (Adapter End)	SSOP
Convert To (Adapter End)	0.3 in
Convert To (Adapter End)	DIP
Convert To (Adapter End)	7.62 mm
Mounting Type	Through Hole
Number of Pins	18 pins
Pitch - Mating	0.65 mm
Pitch - Mating	0.026 in
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in

Part	Board Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Termination	Contact Finish - Mating	Contact Material - Post [custom]	Number of Pins	Mounting Type	Termination Post Length	Termination Post Length	Convert From (Adapter End)	Contact Finish - Post
Aries Electronics 18-351000-11-RC	FR4 Epoxy Glass	10 çin	0.25 çm	0.65 mm	0.026 in	2.54 mm	0.1 in	0.3 in	DIP	7.62 mm	Solder	Gold	Brass	18 pins	Through Hole	3.18 mm	0.125 in	SSOP	Gold
Aries Electronics 18-351000-10	FR4 Epoxy Glass	200 µin	5.08 µm	0.65 mm	0.026 in	2.54 mm	0.1 in	0.3 in	DIP	7.62 mm	Solder		Brass	18 pins	Through Hole	3.18 mm	0.125 in	SSOP	Tin-Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	21	$ 23.72
