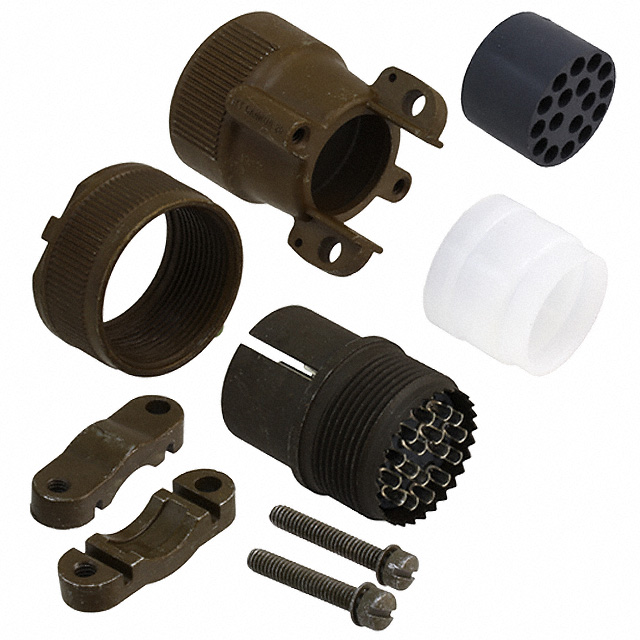

MS3106E20-29P

Active

ITT Cannon, LLC

CONN CIRCULAR PIN 17 POS SOLDER ST CABLE MOUNT 17 TERMINAL 1 PORT

Deep-Dive with AI

Search across all available documentation for this part.

MS3106E20-29P

Active

ITT Cannon, LLC

CONN CIRCULAR PIN 17 POS SOLDER ST CABLE MOUNT 17 TERMINAL 1 PORT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106E20-29P

Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Current Rating (Amps)	22 A
Features	Coupling Nut, Cable Clamp
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	29
Shell Size - Insert [Min]	20
Voltage Rating	700 VDC, 500 VAC

MS3106E20 Series

Part	Qualification	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]	Shell Material	Primary Material	Mounting Type	Connector Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Orientation	Number of Positions	Voltage Rating	Insert Material	Contact Finish - Mating	Shell Finish	Shielding	Contact Material	Ingress Protection	Applications	Color	Grade	Shell Size - Insert
ITT Cannon, LLC MS3106E2024S	MIL-DTL-5015	13 A 46 A	0.656 in	16.66 mm	Aluminum Alloy	Metal	Free Hanging (In-Line)	Female Sockets Plug	20	24	-55 °C	125 °C	Backshell Coupling Nut	N	4	500 VAC 700 VDC	Plastic	Silver	Olive Drab Cadmium	Unshielded	Copper Alloy	Environment Resistant	Aviation Industrial Marine Military	Olive Drab	Military
ITT Cannon, LLC MS3106E20-29PF187	MIL-DTL-5015	22 A			Aluminum Alloy	Metal	Free Hanging (In-Line)	Male Pins Plug	20	29	-55 °C	125 °C	Cable Clamp Coupling Nut	N		500 VAC 700 VDC		Silver	Olive Drab Cadmium			Environment Resistant		Olive Drab	Military
ITT Cannon, LLC MS3106E20-29P	MIL-DTL-5015	22 A			Aluminum Alloy	Metal	Free Hanging (In-Line)	Male Pins Plug	20	29	-55 °C	125 °C	Cable Clamp Coupling Nut	N		500 VAC 700 VDC		Silver	Olive Drab Cadmium			Environment Resistant		Olive Drab	Military
ITT Cannon, LLC MS3106E2027SZ	MIL-DTL-5015	13 A	0.656 in	16.66 mm	Aluminum Alloy	Metal	Free Hanging (In-Line)	Female Sockets Plug	20	27	-55 °C	125 °C	Backshell Coupling Nut	Z	14	500 VAC 700 VDC	Plastic	Silver	Olive Drab Cadmium	Unshielded	Copper Alloy	Environment Resistant	Aviation Industrial Marine Military	Olive Drab	Military
ITT Cannon, LLC MS3106E20-4SW	MIL-DTL-5015	41 A			Aluminum Alloy	Metal	Free Hanging (In-Line)	Female Sockets Plug			-55 °C	125 °C	Cable Clamp Coupling Nut	W	4	900 VAC 1250 VDC		Silver	Olive Drab Cadmium			Environment Resistant		Olive Drab	Military	20-4
ITT Cannon, LLC MS3106E20-29PW	MIL-DTL-5015	22 A			Aluminum Alloy	Metal	Free Hanging (In-Line)	Male Pins Plug	20	29	-55 °C	125 °C	Cable Clamp Coupling Nut	W		500 VAC 700 VDC		Silver	Olive Drab Cadmium			Environment Resistant		Olive Drab	Military
ITT Cannon, LLC MS3106E20-7SF187	MIL-DTL-5015	22 A			Aluminum Alloy	Metal	Free Hanging (In-Line)	Female Sockets Plug			-55 °C	125 °C	Cable Clamp Coupling Nut	N	8	500 VAC 700 VDC		Silver	Olive Drab Cadmium			Environment Resistant		Olive Drab	Military	20-7
ITT Cannon, LLC MS3106E20-29PWF187	MIL-DTL-5015	22 A			Aluminum Alloy	Metal	Free Hanging (In-Line)	Male Pins Plug	20	29	-55 °C	125 °C	Cable Clamp Coupling Nut	W		500 VAC 700 VDC		Silver	Olive Drab Cadmium			Environment Resistant		Olive Drab	Military
ITT Cannon, LLC MS3106E20-27SX	MIL-DTL-5015	22 A			Aluminum Alloy	Metal	Free Hanging (In-Line)	Female Sockets Plug	20	27	-55 °C	125 °C	Cable Clamp Coupling Nut	X	14	500 VAC 700 VDC		Silver	Olive Drab Cadmium			Environment Resistant		Olive Drab	Military

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 54.64
		10	$ 52.96
		25	$ 49.89
		50	$ 47.15
Digikey	Bulk	1	$ 45.90
		10	$ 42.12
		25	$ 40.50
		50	$ 39.15
		50	$ 67.78
		100	$ 36.99
		250	$ 35.91

Description

General part information

MS3106E20 Series

17 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available
