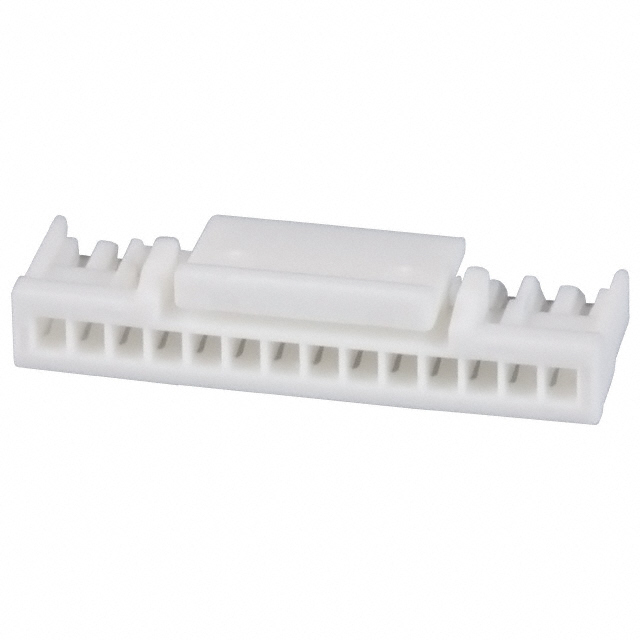

GHR-14V-S

Active

JST Sales America Inc.

CONN RCPT HSG 14POS 1.25MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 14POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	GHR-14V-S

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm

Part	Insulation Material	Note	Number of Positions	Color	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Fastening Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination
JST Sales America Inc. GHR-14V-S	Polybutylene Terephthalate (PBT)	Contacts Not Included	14	Natural	Receptacle	Free Hanging (In-Line)	0.049 in	1.25 mm	1	Latch Lock	Female Socket	-25 °C	85 °C	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Rectangular Connectors - Housings Receptacle Natural 0.049" (1.25mm)

Technical documentation and resources
