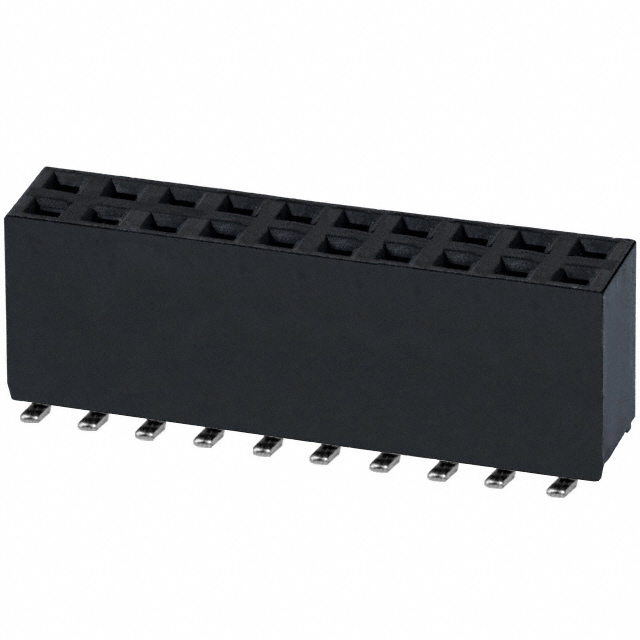

NPTC102KFMS-RC

Active

Sullins Connector Solutions

CONN HDR 20POS 0.1 TIN SMD

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HDR 20POS 0.1 TIN SMD

Technical Specifications

Parameters and characteristics for this part

Specification	NPTC102KFMS-RC

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.299 in
Insulation Height	7.6 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Material	Voltage Rating	Termination	Number of Positions	Number of Rows	Insulation Height	Insulation Height	Insulation Material	Mounting Type	Number of Positions Loaded	Material Flammability Rating	Fastening Type	Contact Finish - Post	Contact Shape	Contact Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color
Sullins Connector Solutions NPTC102KFMS-RC	Phosphor Bronze	250 VDC	Solder	20	2	0.299 in	7.6 mm	Nylon 6T Polyamide (PA6T)	Surface Mount	All	UL94 V-0	Push-Pull	Tin	Square	Female Socket	3 A	0.1 in	2.54 mm	Header	2.54 mm	0.1 in	125 °C	-40 °C	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Header Connector 0.100" (2.54mm) Surface Mount Tin
