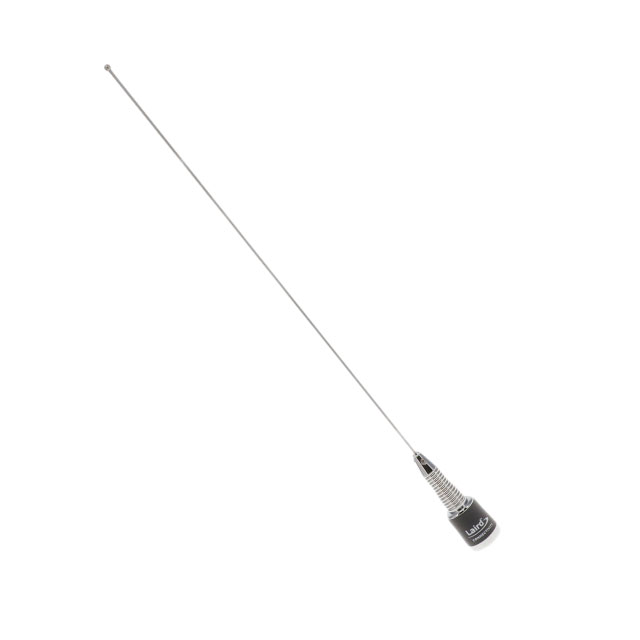

B132S-L
ActiveTE Connectivity Raychem Cable Protection
WHIP,MC,1/4,132-525MHZ, 0,CH,GP,SPG F TU
Deep-Dive with AI
Search across all available documentation for this part.
B132S-L
ActiveTE Connectivity Raychem Cable Protection
WHIP,MC,1/4,132-525MHZ, 0,CH,GP,SPG F TU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B132S-L |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency (Center/Band) | 328 MHz |
| Frequency Group | UHF, VHF |
| Frequency Range [Max] | 525 MHz |
| Frequency Range [Min] | 132 MHz |
| Gain | 2 dBic |
| Height (Max) | 584.2 mm |
| Height (Max) [Max] | 23 in |
| Mounting Type | Base Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 200 W |
| Termination | NMO |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 42.73 | |
| 10 | $ 32.63 | |||
| 25 | $ 30.05 | |||
| 100 | $ 27.17 | |||
| 250 | $ 26.87 | |||
Description
General part information
B132 Series
Whip Antenna, Single Band, VHF / Vehicular, External Mount, Stud/Screw/Lug Mount, NMO, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
