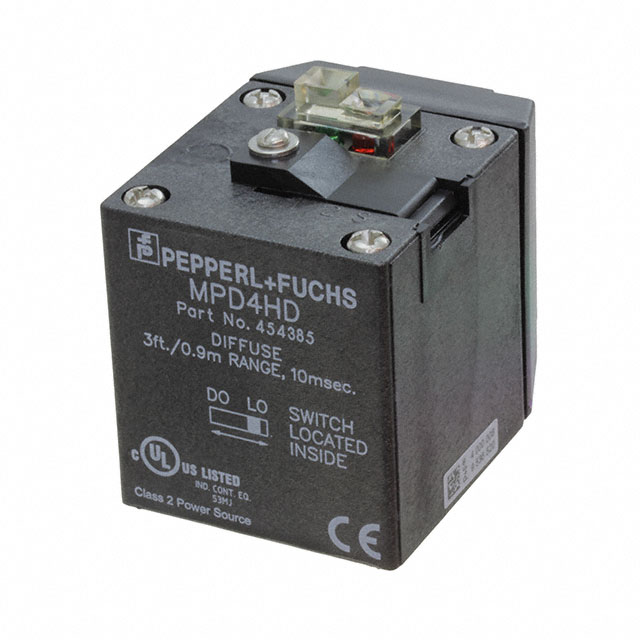

MPD4HD
ActiveSENSOR HEAD, MP PHOTOELECTRIC SENSORS SERIES, MODULAR, DIFFUSE, 900 MM, PLASTIC LENS
Deep-Dive with AI
Search across all available documentation for this part.
MPD4HD
ActiveSENSOR HEAD, MP PHOTOELECTRIC SENSORS SERIES, MODULAR, DIFFUSE, 900 MM, PLASTIC LENS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPD4HD |
|---|---|
| Adjustment Type | Adjustable |
| Ingress Protection | IP69K |
| Light Source | Infrared |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Configuration | Light-On/Dark-On |
| Response Time | 10 ms |
| Sensing Distance | 900 mm |
| Sensing Distance | 35.433 in |
| Sensing Method | Diffuse |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MPD4H Series
The MP series Modular Photoelectric Sensor which features harsh duty, modular design - exchangeable rotatable heads - limit switch and mini style plug-in bases - screw terminal, preleaded and connector version receptacles. The series offers sensors in diffuse mode with 300, 450, 760, 900mm, 1.3, 1.8, 3m sensing range, retro-reflective mode with 4.5, 6, 9m sensing rang, thru-beam mode with 36, 60m sensing range and fibre optic mode sensing range with determined by fibre optic cable.
