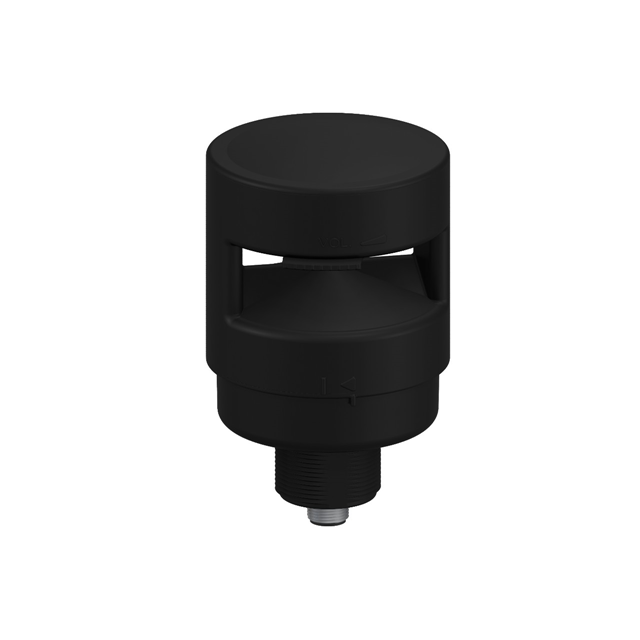

TL70AQ

Active

BANNER ENGINEERING

COMPLETE UNIT LED STEADY

Search across all available documentation for this part.

Active

BANNER ENGINEERING

COMPLETE UNIT LED STEADY

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 141.00
Newark	Each	1	$ 141.00

General part information

Stack Light Acoustic Element Alarm Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TL70AQ	- Series

Cable Type	-	Round Cable
Color	-	Black
Connector Type	-	Plug to Plug
Features	Alarm	Toggle Switch, Alarm, Dip Switch, Molded Plugs
Function - Audible	Multiple	Multiple, Programmable
Function - Lighting	-	Steady, Multiple, Flashing, Rotating
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP67 - Dust Tight, Waterproof, IP65 - Dust Tight, Water Resistant, IP50
Length	-	50.84 ft
Length	-	7.6 - 15.5 m
Length	-	24.93 - 75.44 ft
Length	-	22.99 m
Light Color	-	Yellow, Green, Red, Orange, Blue, White, Magenta
Mounting Type	-	Free Hanging (In-Line)
Number of Positions/Contacts	-	8p8c (RJ45, Ethernet)
Number of Stacks	1	1 - 3
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-40 °C	-40 - -20 C
Shielding	-	Shielded
Termination Style	Connector	Wire Leads, Screw Terminal, Connector, M12
Type	Acoustic Element	Complete Unit, Controller, Acoustic Element, Mounting Base, Shield
Voltage - Supply	-	24 - 30 VDC
Voltage - Supply [Max]	30 VDC	24 - 240 VAC
Voltage - Supply [Min]	12 V	10 - 100 VAC

TOWER LIGHT: 2-COLOR INDICATOR

Part	Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Function - Lighting	Number of Stacks	Termination Style	Voltage - Supply [Max]	Voltage - Supply	Voltage - Supply [Min]	Light Color	Features	Function - Audible
BANNER ENGINEERING TL50GY	Complete Unit	IP67 - Dust Tight, Waterproof	50 °C	-20 C	Steady	2	Wire Leads	24 VAC	30 VDC	18 VAC
BANNER ENGINEERING TL50YQ	Complete Unit	IP65 - Dust Tight, Water Resistant	50 °C	-40 °C	Steady	1	Wire Leads	30 VDC	24 VAC	18 V	Yellow
BANNER ENGINEERING TL50BQ	Complete Unit	IP67 - Dust Tight, Waterproof	50 °C	-40 °C	Steady	1	Wire Leads	30 VDC	24 VAC	18 V
BANNER ENGINEERING TL50G	Complete Unit	IP67 - Dust Tight, Waterproof	50 °C	-40 °C	Steady	1	Wire Leads	30 VDC		18	Green
BANNER ENGINEERING TL50P2	Complete Unit	IP67 - Dust Tight, Waterproof	50 °C	-40 °C	Multiple	2	Wire Leads	30 VDC		10 VDC	Green, Red
BANNER ENGINEERING LC80T	Controller	IP50	50 °C	-30 ░C	Flashing		Screw Terminal					Toggle Switch
BANNER ENGINEERING TL50GQ	Complete Unit	IP65 - Dust Tight, Water Resistant	50 °C	-40 °C	Steady	1	Connector	30 VDC	24 VAC	18 V	Green
BANNER ENGINEERING TL70AQ	Acoustic Element	IP65 - Dust Tight, Water Resistant	50 °C	-40 °C		1	Connector	30 VDC		12 V		Alarm	Multiple
BANNER ENGINEERING TL70OQ	Complete Unit	IP65 - Dust Tight, Water Resistant	50 °C	-40 °C	Steady	1	M12	30 VDC		12 V	Orange	Dip Switch
BANNER ENGINEERING TL50RQ	Complete Unit	IP67 - Dust Tight, Waterproof	50 °C	-40 °C	Steady	1	Wire Leads	30 VDC	24 VAC	18 V	Red
