NJU6385KG1-TE3

Active

Nisshinbo Micro Devices Inc

XTAL OSC XO 50.0000MHZ CMOS SMD

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

XTAL OSC XO 50.0000MHZ CMOS SMD

Technical Specifications

Parameters and characteristics for this part

Specification	NJU6385KG1-TE3

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	35 µA
Current - Supply (Max) [Max]	9.9 mA
Frequency	50 MHz
Frequency Stability	1 ppm
Function	Standby (Power Down)
Height - Seated (Max)	0.45 mm
Height - Seated (Max) [Max] [z]	0.018 "
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output	CMOS

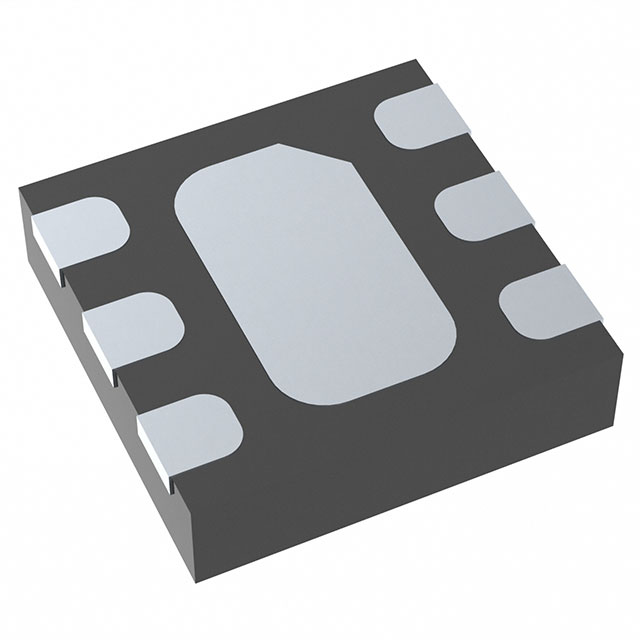

Package / Case	6-XFDFN Exposed Pad
Size / Dimension [x]	1.6 mm
Size / Dimension [x]	0.063 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Type	XO (Standard)
Voltage - Supply	3.3 V

Part	Base Resonator	Voltage - Supply	Current - Supply (Max) [Max]	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Function	Frequency Stability	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Package / Case	Current - Supply (Disable) (Max) [Max]	Output
Nisshinbo Micro Devices Inc NJU6385KG1-TE3	Crystal	3.3 V	9.9 mA	50 MHz	125 °C	-40 °C	0.063 in	1.6 mm	0.063 in	1.6 mm	XO (Standard)	Standby (Power Down)	1 ppm	Surface Mount	0.45 mm	0.018 "	6-XFDFN Exposed Pad	35 µA	CMOS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 MHz XO (Standard) CMOS Oscillator 3.3V Standby (Power Down) 6-XFDFN Exposed Pad
