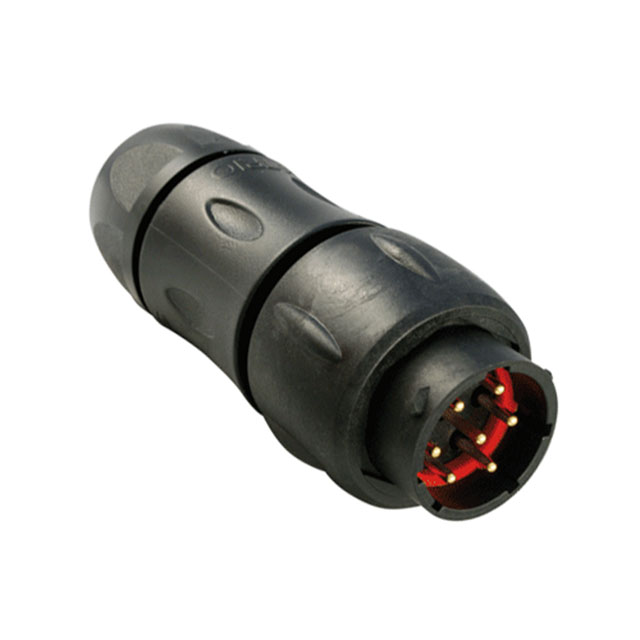

UTS1GJC147P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG MALE 7POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

UTS1GJC147P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG MALE 7POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 18.30

Description

General part information

UTS1G Series

7 (6 + PE) Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UTS1GJC147P	UTS1G Series

Connector Type	Receptacle Housing	Receptacle Housing
Contact Shape	Circular	Circular
Contact Size	16	16
Contact Type	Crimp	Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Housing Color	Black	Black
Ingress Protection	IP68, IP69K	IP68, IP69K
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	-	4 - 12
Number of Positions [custom]	1	1
Number of Positions [custom]	6	6
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	N	N
Shell Size - Insert	-	12-8, 14-12, 10-4
Shell Size - Insert [Max]	14	14
Shell Size - Insert [Min]	7	7
Shielding	Unshielded	Unshielded
Type	For Male Pins	For Male Pins

UTS1G Series

CONN RCPT HSNG MALE 8POS INLINE

Part	Note	Contact Size	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Shielding	Shell Size - Insert	Type	Fastening Type	Orientation	Material Flammability Rating	Features	Contact Shape	Contact Type	Housing Color	Number of Positions	Ingress Protection	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions [custom]	Number of Positions [custom]
Souriau-Sunbank by Eaton UTS1GJC128P	Contacts Not Included	16	-40 °C	105 ░C	Receptacle Housing	Free Hanging (In-Line)	Unshielded	12-8	For Male Pins	Bayonet Lock	N	UL94 V-0	Backshell	Circular	Crimp	Black	8	IP68, IP69K
Souriau-Sunbank by Eaton UTS1GN1412P	Contacts Not Included	16	-40 °C	105 ░C	Receptacle Housing	Free Hanging (In-Line)	Unshielded	14-12	For Male Pins	Bayonet Lock	N	UL94 V-0		Circular	Crimp	Black	12	IP68, IP69K
Souriau-Sunbank by Eaton UTS1GJC147P	Contacts Not Included	16	-40 °C	105 ░C	Receptacle Housing	Free Hanging (In-Line)	Unshielded		For Male Pins	Bayonet Lock	N	UL94 V-0	Backshell	Circular	Crimp	Black		IP68, IP69K	14	7	1	6
Souriau-Sunbank by Eaton UTS1GJC1412P	Contacts Not Included	16	-40 °C	105 ░C	Receptacle Housing	Free Hanging (In-Line)	Unshielded	14-12	For Male Pins	Bayonet Lock	N	UL94 V-0	Backshell	Circular	Crimp	Black	12	IP68, IP69K
Souriau-Sunbank by Eaton UTS1GJC104P	Contacts Not Included	16	-40 °C	105 ░C	Receptacle Housing	Free Hanging (In-Line)	Unshielded	10-4	For Male Pins	Bayonet Lock	N	UL94 V-0	Backshell	Circular	Crimp	Black	4	IP68, IP69K
Souriau-Sunbank by Eaton UTS1GN104P	Contacts Not Included	16	-40 °C	105 ░C	Receptacle Housing	Free Hanging (In-Line)	Unshielded	10-4	For Male Pins	Bayonet Lock	N	UL94 V-0		Circular	Crimp	Black	4	IP68, IP69K
Souriau-Sunbank by Eaton UTS1GN128P	Contacts Not Included	16	-40 °C	105 ░C	Receptacle Housing	Free Hanging (In-Line)	Unshielded	12-8	For Male Pins	Bayonet Lock	N	UL94 V-0		Circular	Crimp	Black	8	IP68, IP69K
Souriau-Sunbank by Eaton UTS1GN147P	Contacts Not Included	16	-40 °C	105 ░C	Receptacle Housing	Free Hanging (In-Line)	Unshielded		For Male Pins	Bayonet Lock	N	UL94 V-0		Circular	Crimp	Black		IP68, IP69K	14	7	1	6
