Q-1U0710005001M
ActiveAmphenol Custom Cable

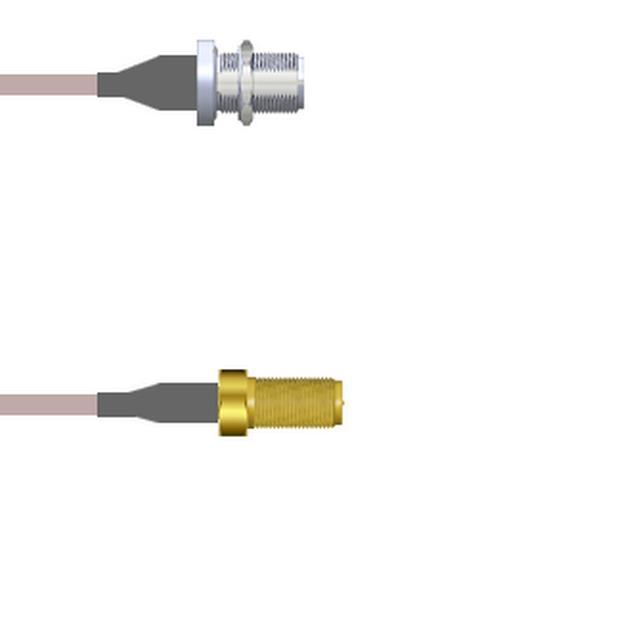

CBL ASSY RPSMA-NTYPE JK-JK 3.3'
Deep-Dive with AI
Search across all available documentation for this part.
Q-1U0710005001M
ActiveAmphenol Custom Cable
CBL ASSY RPSMA-NTYPE JK-JK 3.3'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-1U0710005001M |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length | 1 m |
| Length | 3.3 ft |
| Length | 39.4 in |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to N-Type |
Q-1U0710 Series
| Part | 2nd Connector Mounting Type | 2nd Connector | Frequency - Max [Max] | Overall Impedance | Style | Features | 2nd Connector Mounting Feature | 2nd Contact Gender | 1st Contact Gender | Cable Type | 1st Connector | Color | Length | Length | 1st Connector Mounting Type | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Panel Mount | N-Type Jack | 11 GHz | 50 Ohms | RP-SMA to N-Type | Shielded | Bulkhead - Front Side Nut | Female | Male | RG-174 | RP-SMA Jack | Black | 29.53 " | 750 mm | Free Hanging (In-Line) | |||
Amphenol Custom Cable | Panel Mount | N-Type Jack | 11 GHz | 50 Ohms | RP-SMA to N-Type | Shielded | Bulkhead - Front Side Nut | Female | Male | RG-316 | RP-SMA Jack | Copper | 36 in | 91.44 cm | Free Hanging (In-Line) | |||
Amphenol Custom Cable | Panel Mount | N-Type Jack | 11 GHz | 50 Ohms | RP-SMA to N-Type | Shielded | Bulkhead - Front Side Nut | Female | Male | RG-316 | RP-SMA Jack | Copper | 12 " | 304.8 mm | Free Hanging (In-Line) | |||
Amphenol Custom Cable | Panel Mount | N-Type Jack | 11 GHz | 50 Ohms | RP-SMA to N-Type | Shielded | Bulkhead - Front Side Nut | Female | Male | RG-174 | RP-SMA Jack | Black | 6 in | 152.4 mm | Free Hanging (In-Line) | |||
Amphenol Custom Cable | Panel Mount | N-Type Jack | 11 GHz | 50 Ohms | RP-SMA to N-Type | Shielded | Bulkhead - Front Side Nut | Female | Male | RG-316 | RP-SMA Jack | Copper | 39.4 in | 1 m | Free Hanging (In-Line) | 3.3 ft | ||
Amphenol Custom Cable | Panel Mount | N-Type Jack | 11 GHz | 50 Ohms | RP-SMA to N-Type | Shielded | Bulkhead - Front Side Nut | Female | Male | RG-316 | RP-SMA Jack | Copper | 3 in | 76.2 mm | Free Hanging (In-Line) | |||
Amphenol Custom Cable | Panel Mount | N-Type Jack | 11 GHz | 50 Ohms | RP-SMA to N-Type | Shielded | Bulkhead - Front Side Nut | Female | Male | RG-174 | RP-SMA Jack | Black | Free Hanging (In-Line) | 9.843 " | 250 mm | |||
Amphenol Custom Cable | Panel Mount | N-Type Jack | 11 GHz | 50 Ohms | RP-SMA to N-Type | Shielded | Bulkhead - Front Side Nut | Female | Male | RG-316 | RP-SMA Jack | Copper | 78.7 in | 2 m | Free Hanging (In-Line) | 6.6 ft | ||
Amphenol Custom Cable | Panel Mount | N-Type Jack | 11 GHz | 50 Ohms | RP-SMA to N-Type | Shielded | Bulkhead - Front Side Nut | Female | Male | RG-174 | RP-SMA Jack | Black | 48 in | 1200 mm | Free Hanging (In-Line) | 4 ft | ||
Amphenol Custom Cable | Panel Mount | N-Type Jack | 11 GHz | 50 Ohms | RP-SMA to N-Type | Shielded | Bulkhead - Front Side Nut | Female | Male | RG-316 | RP-SMA Jack | Copper | 5 ' | 1.5 m | Free Hanging (In-Line) | 5 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 113.56 | |
| 25 | $ 111.39 | |||
| 50 | $ 109.23 | |||
| 100 | $ 107.06 | |||
| 250 | $ 104.90 | |||
Description
General part information
Q-1U0710 Series
Cable Assembly Coaxial RP-SMA to N-Type RG-316 39.4" (1.0m) 3.3'
