Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1212F 004A1000 | 1212F Series |
|---|---|---|
| Cable Type | Multi-Pair, Cat5e | Multi-Pair, Cat5e |
| Conductor Insulation | Polyolefin (PO) | Polyolefin (PO) |
| Conductor Material | Copper, Bare | Copper, Bare |
| Conductor Strand | Solid | Solid |
| Features | Drain Wire | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 6.6 mm | 6.6 mm |
| Jacket (Insulation) Diameter [diameter] | 0.26 in | 0.26 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser | Poly-Vinyl Chloride (PVC), Riser |
| Jacket Color | Yellow | Red, Yellow, Blue, Black |
| Length | 1000 ft | 1000 ft |
| Length | 304.8 m | 304.8 m |
| Length | - | 500 ' |
| Length | - | 152.4 m |
| Number of Conductors | 8 | 8 |
| Operating Temperature [Max] | 75 ░C | 75 ░C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Ratings | UL Style CMR | UL Style CMR |
| Shield Coverage | 100 % | 100 % |
| Shield Material | Polyester, Aluminum | Polyester, Aluminum |
| Shield Type | Foil | Foil |
| Usage | Network | Network |
| Voltage | 300 V | 300 V |
| Wire Gauge | 24 AWG | 24 AWG |
1212F Series
CAT5E+ 4PR F/UTP CMR RIB
| Part | Number of Conductors | Usage | Jacket (Insulation) Material | Shield Material | Shield Type | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Length [x] | Length [x] | Wire Gauge | Voltage | Shield Coverage | Features | Conductor Material | Cable Type | Conductor Strand | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Belden Inc. 1212F 009A500 | 8 | Network | Poly-Vinyl Chloride (PVC), Riser | Aluminum, Polyester | Foil | UL Style CMR | 6.6 mm | 0.26 in | Polyolefin (PO) | 500 ' | 152.4 m | 24 AWG | 300 V | 100 % | Drain Wire | Copper, Bare | Multi-Pair, Cat5e | Solid | -25 °C | 75 ░C | |||
Belden Inc. 1212F 009A1000 | 8 | Network | Poly-Vinyl Chloride (PVC), Riser | Aluminum, Polyester | Foil | UL Style CMR | 6.6 mm | 0.26 in | Polyolefin (PO) | 24 AWG | 300 V | 100 % | Drain Wire | Copper, Bare | Multi-Pair, Cat5e | Solid | -25 °C | 75 ░C | 1000 ft | 304.8 m | |||
Belden Inc. 1212F 0021000 | 8 | Network | Poly-Vinyl Chloride (PVC), Riser | Aluminum, Polyester | Foil | UL Style CMR | 6.6 mm | 0.26 in | Polyolefin (PO) | 24 AWG | 300 V | 100 % | Drain Wire | Copper, Bare | Multi-Pair, Cat5e | Solid | -25 °C | 75 ░C | 1000 ft | 304.8 m | Red | ||
Belden Inc. 1212F 0091000 | 8 | Network | Poly-Vinyl Chloride (PVC), Riser | Aluminum, Polyester | Foil | UL Style CMR | 6.6 mm | 0.26 in | Polyolefin (PO) | 24 AWG | 300 V | 100 % | Drain Wire | Copper, Bare | Multi-Pair, Cat5e | Solid | -25 °C | 75 ░C | 1000 ft | 304.8 m | |||
Belden Inc. 1212F 004A1000 | 8 | Network | Poly-Vinyl Chloride (PVC), Riser | Aluminum, Polyester | Foil | UL Style CMR | 6.6 mm | 0.26 in | Polyolefin (PO) | 24 AWG | 300 V | 100 % | Drain Wire | Copper, Bare | Multi-Pair, Cat5e | Solid | -25 °C | 75 ░C | 1000 ft | 304.8 m | Yellow | ||
Belden Inc. 1212F 002A1000 | 8 | Network | Poly-Vinyl Chloride (PVC), Riser | Aluminum, Polyester | Foil | UL Style CMR | 6.6 mm | 0.26 in | Polyolefin (PO) | 24 AWG | 300 V | 100 % | Drain Wire | Copper, Bare | Multi-Pair, Cat5e | Solid | -25 °C | 75 ░C | 1000 ft | 304.8 m | Red | ||
Belden Inc. 1212F 006A1000 | 8 | Network | Poly-Vinyl Chloride (PVC), Riser | Aluminum, Polyester | Foil | UL Style CMR | 6.6 mm | 0.26 in | Polyolefin (PO) | 24 AWG | 300 V | 100 % | Drain Wire | Copper, Bare | Multi-Pair, Cat5e | Solid | -25 °C | 75 ░C | 1000 ft | 304.8 m | Blue | ||
Belden Inc. 1212F 006A500 | 8 | Network | Poly-Vinyl Chloride (PVC), Riser | Aluminum, Polyester | Foil | UL Style CMR | 6.6 mm | 0.26 in | Polyolefin (PO) | 500 ' | 152.4 m | 24 AWG | 300 V | 100 % | Drain Wire | Copper, Bare | Multi-Pair, Cat5e | Solid | -25 °C | 75 ░C | Blue | ||
Belden Inc. 1212F 0101000 | 8 | Network | Poly-Vinyl Chloride (PVC), Riser | Aluminum, Polyester | Foil | UL Style CMR | 6.6 mm | 0.26 in | Polyolefin (PO) | 24 AWG | 300 V | 100 % | Drain Wire | Copper, Bare | Multi-Pair, Cat5e | Solid | -25 °C | 75 ░C | 1000 ft | 304.8 m | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 0.67 | |
Description
General part information
1212F Series

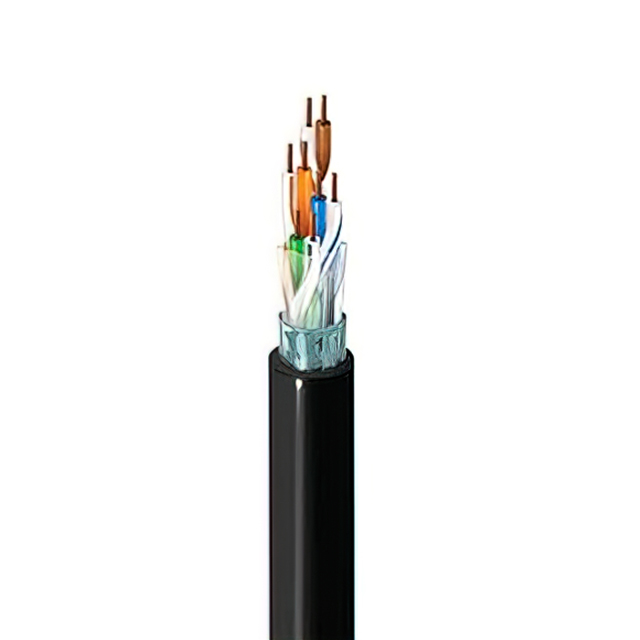

8 (4 Pair) Conductor Multi-Pair, Cat5e Cable Yellow 24 AWG Foil 1000.0' (304.8m)
