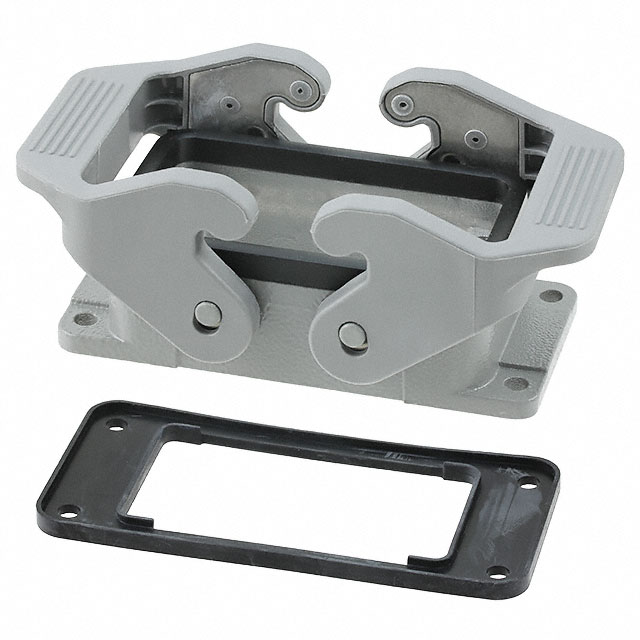

H10B-AG-SL
ActiveTE Connectivity AMP Connectors
CONN BASE BOTTOM SZ10B
Deep-Dive with AI
Search across all available documentation for this part.
H10B-AG-SL
ActiveTE Connectivity AMP Connectors
CONN BASE BOTTOM SZ10B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | H10B-AG-SL | H10B Series |
|---|---|---|
| Accessory Type | - | Cover with Retaining Cord |
| Connector Type | Base - Panel Mount | Base - Box Mount, Hood, Base - Panel Mount |
| Features | - | Cover |
| For Use With/Related Products | - | HBR 10B Housings |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (1) on Base Bottom, Locking Clip (2) on Base Bottom, Locking Clip (2) on Hood |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | 10B | 10B |
| Size / Dimension [x] | 95.2 mm | 73 - 95.2 mm |
| Size / Dimension [x] | 3.748 " | 2.874 - 3.748 " |
| Size / Dimension [y] | 1.799 " | 1.693 - 2.244 " |
| Size / Dimension [y] | 45.7 mm | 43 - 57 mm |
| Size / Dimension [z] | 1.173 in | 1.173 - 2.976 " |
| Size / Dimension [z] | 29.8 mm | 29.8 - 75.6 mm |
| Specifications | - | Screw Locks |
| Style | Bottom Entry | Side Entry, Top Entry, Bottom Entry |
| Thread Size | - | M25, PG16, PG21, M32, PG29 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.64 | |
| 14 | $ 17.27 | |||
| 28 | $ 16.81 | |||
| 56 | $ 15.99 | |||
| 105 | $ 14.42 | |||
| 252 | $ 14.33 | |||
| 504 | $ 12.50 | |||
H10B Series
CONN BASE SIDE DUAL SZ10B M25
| Part | Style | Connector Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Lock Location | Thread Size | Housing Material | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Size | Housing Finish | Specifications | Accessory Type | For Use With/Related Products | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors H10B-SDRH-LB-2M25 | Side Entry | Base - Box Mount | 2.244 " | 75.6 mm | 57 mm | 3.701 " | 2.976 " | 94 mm | Locking Clip (1) on Base Bottom | M25 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | ||||
TE Connectivity AMP Connectors H10B-TG-PG16 | Top Entry | Hood | 1.693 in | 60 mm | 43 mm | 2.874 in | 2.362 " | 73 mm | Locking Clip (2) on Base Bottom | PG16 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | ||||
TE Connectivity AMP Connectors H10B-TGH-RO-PG21 | Top Entry | Hood | 1.693 in | 72 mm | 43 mm | 2.874 in | 2.835 in | 73 mm | Locking Clip (1) on Base Bottom | PG21 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | ||||
TE Connectivity AMP Connectors H10B-TSH-PG21 | Side Entry | Hood | 1.693 in | 72 mm | 43 mm | 2.874 in | 2.835 in | 73 mm | Locking Clip (2) on Base Bottom | PG21 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | ||||
TE Connectivity AMP Connectors H10B-TSB-M25 | Side Entry | Hood | 1.693 in | 60 mm | 43 mm | 2.874 in | 2.362 " | 73 mm | Locking Clip (2) on Hood | M25 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | ||||
TE Connectivity AMP Connectors H10B-SDRH-LB-2M32 | Side Entry | Base - Box Mount | 2.244 " | 75.6 mm | 57 mm | 3.701 " | 2.976 " | 94 mm | Locking Clip (1) on Base Bottom | M32 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | ||||
TE Connectivity AMP Connectors H10B-SDRH-BO-2PG21 | Side Entry | Base - Box Mount | 2.244 " | 75.6 mm | 57 mm | 3.701 " | 2.976 " | 94 mm | Locking Clip (2) on Hood | PG21 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | ||||
TE Connectivity AMP Connectors H10B-AG-SL | Bottom Entry | Base - Panel Mount | 1.799 " | 29.8 mm | 45.7 mm | 3.748 " | 1.173 in | 95.2 mm | Locking Clip (2) on Base Bottom | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | |||||
TE Connectivity AMP Connectors H10BPR-KDB | Screw Locks | Cover with Retaining Cord | HBR 10B Housings | ||||||||||||||||||
TE Connectivity AMP Connectors H10B-AD-BO | Bottom Entry | Base - Panel Mount | 1.799 " | 29.8 mm | 45.7 mm | 3.748 " | 1.173 in | 95.2 mm | Locking Clip (2) on Hood | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | Cover | ||||
TE Connectivity AMP Connectors H10B-SDR-BO-2PG16 | Side Entry | Base - Box Mount | 2.047 " | 60.6 mm | 52 mm | 3.701 " | 2.386 in | 94 mm | Locking Clip (2) on Hood | PG16 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | ||||
TE Connectivity AMP Connectors H10B-SGR-PG16 | Side Entry | Base - Box Mount | Locking Clip (2) on Base Bottom | PG16 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | ||||||||||
TE Connectivity AMP Connectors H10B-TGH-PG29 | Top Entry | Hood | 1.693 in | 72 mm | 43 mm | 2.874 in | 2.835 in | 73 mm | Locking Clip (2) on Base Bottom | PG29 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | ||||
TE Connectivity AMP Connectors H10B-SDR-LB-2PG16 | Side Entry | Base - Box Mount | 2.047 " | 60.6 mm | 52 mm | 3.701 " | 2.386 in | 94 mm | Locking Clip (1) on Base Bottom | PG16 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | ||||
TE Connectivity AMP Connectors H10B-TS-RO-M25 | Side Entry | Hood | 1.693 in | 60 mm | 43 mm | 2.874 in | 2.362 " | 73 mm | Locking Clip (1) on Base Bottom | M25 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | ||||
TE Connectivity AMP Connectors H10B-TG-RO-M25 | Top Entry | Hood | 1.693 in | 60 mm | 43 mm | 2.874 in | 2.362 " | 73 mm | Locking Clip (1) on Base Bottom | M25 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | ||||
TE Connectivity AMP Connectors H10B-AG-LB | Bottom Entry | Base - Panel Mount | Locking Clip (1) on Base Bottom | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | |||||||||||
TE Connectivity AMP Connectors H10B-TG-M25 | Top Entry | Hood | 1.693 in | 60 mm | 43 mm | 2.874 in | 2.362 " | 73 mm | Locking Clip (2) on Base Bottom | M25 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | ||||
TE Connectivity AMP Connectors H10B-TSBH-PG29 | Side Entry | Hood | 1.693 in | 72 mm | 43 mm | 2.874 in | 2.835 in | 73 mm | Locking Clip (2) on Hood | PG29 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | ||||
TE Connectivity AMP Connectors H10B-TG-RO-PG16 | Top Entry | Hood | 1.693 in | 60 mm | 43 mm | 2.874 in | 2.362 " | 73 mm | Locking Clip (1) on Base Bottom | PG16 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | ||||
TE Connectivity AMP Connectors H10B-SDR-LB-PG16 | Side Entry | Base - Box Mount | 2.047 " | 60.6 mm | 52 mm | 3.701 " | 2.386 in | 94 mm | Locking Clip (1) on Base Bottom | PG16 | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | Cover | |||
TE Connectivity AMP Connectors H10B-ADM-LB | Bottom Entry | Base - Panel Mount | 1.799 " | 29.8 mm | 45.7 mm | 3.748 " | 1.173 in | 95.2 mm | Locking Clip (1) on Base Bottom | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | Gray | 10B | Powder Coated | Cover |
Description
General part information
H10B Series
Base - Panel Mount Connector Bottom Entry 10B IP65 - Dust Tight, Water Resistant
