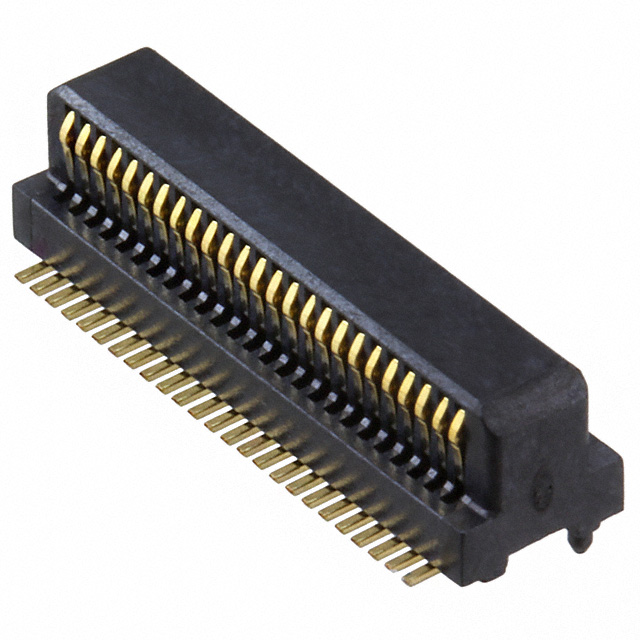

WR-50SB-VFH05-N1

Active

JAE Electronics

CONN RCPT 50POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WR-50SB-VFH05-N1

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide
Height Above Board	3.75 mm
Height Above Board	0.148 in
Mated Stacking Heights	6.5 mm, 4.5 mm, 5.5 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Positions	Mated Stacking Heights	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Height Above Board	Height Above Board	Mounting Type
JAE Electronics WR-50SB-VF-N1	50	4 mm 5 mm 6 mm	0.5 mm	0.02 in	Center Strip Contacts Receptacle	2	Board Guide	4 Áin	0.1 Ám	Gold	3.25 mm	0.128 in	Surface Mount
JAE Electronics WR-50SB-VFH05-N1	50	4.5 mm 5.5 mm 6.5 mm	0.5 mm	0.02 in	Center Strip Contacts Receptacle	2	Board Guide	4 Áin	0.1 Ám	Gold	3.75 mm	0.148 in	Surface Mount
JAE Electronics WR-50SB-VFH30-N1	50	7 mm 8 mm 9 mm	0.5 mm	0.02 in	Center Strip Contacts Receptacle	2	Board Guide	4 Áin	0.1 Ám	Gold	6.25 mm	0.246 in	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	220	$ 4.20

General part information

50 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
