GLF76121L

Active

GLF Integrated Power

2A NANO CURRENT CONSUMED POWER R

Search across all available documentation for this part.

Active

GLF Integrated Power

2A NANO CURRENT CONSUMED POWER R

Technical Specifications

Parameters and characteristics commom to parts in this series

2A NANO CURRENT CONSUMED POWER R

Part	Output Type	Current - Output (Max) [Max]	Rds On (Typ)	Mounting Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package
GLF Integrated Power GLF76121L	P-Channel	2 A	34 mOhm	Surface Mount	2.5 V	5.5 V	85 °C	-40 °C	6-UFBGA, WLCSP	0.97	1.47	6-WLCSP
GLF Integrated Power GLF76121	P-Channel	2 A	34 mOhm	Surface Mount	2.5 V	5.5 V	85 °C	-40 °C	6-UFBGA, WLCSP	0.97	1.47	6-WLCSP
GLF Integrated Power GLF76121S	P-Channel	2 A	34 mOhm	Surface Mount	2.5 V	5.5 V	85 °C	-40 °C	6-UFBGA, WLCSP	0.97	1.47	6-WLCSP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

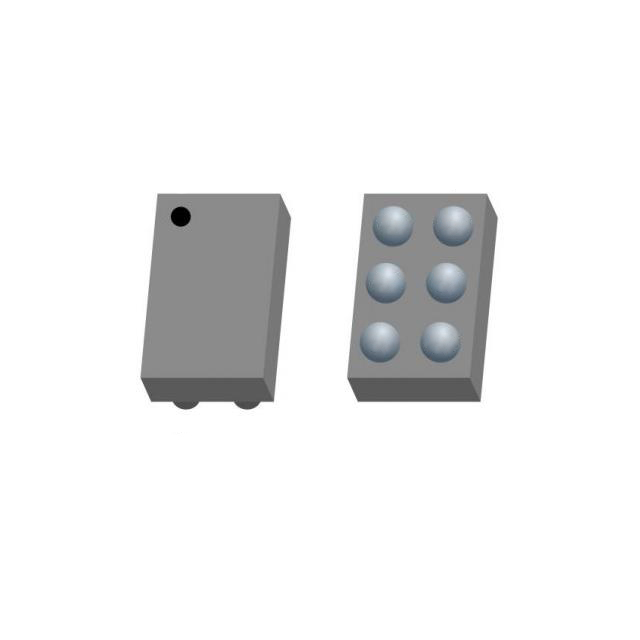

Power Switch/Driver P-Channel 2A 6-WLCSP (1.47x0.97)

Technical documentation and resources

No documents available
