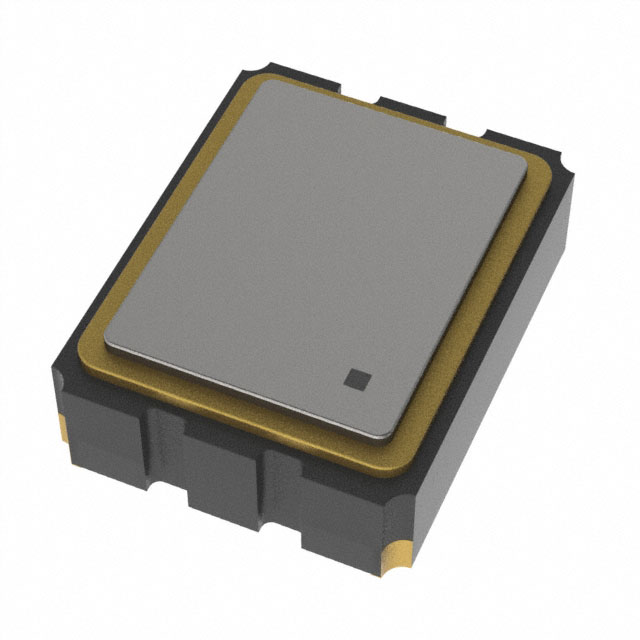

NX33A0010Q
ActiveDiodes Inc
XTAL OSC XO 100.0000MHZ LVDS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NX33A0010Q
ActiveDiodes Inc
XTAL OSC XO 100.0000MHZ LVDS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NX33A0010Q |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 40 mA |
| Current - Supply (Max) [Max] | 70 mA |
| Frequency | 100 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVDS |
| Package / Case | 6-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.73 | |
| 10 | $ 4.49 | |||
| 50 | $ 4.25 | |||
| 100 | $ 3.90 | |||
| 500 | $ 3.72 | |||
| 1000 | $ 3.19 | |||
| Digi-Reel® | 1 | $ 4.73 | ||
| 10 | $ 4.49 | |||
| 50 | $ 4.25 | |||
| 100 | $ 3.90 | |||
| 500 | $ 3.72 | |||
| 1000 | $ 3.19 | |||
| Tape & Reel (TR) | 3000 | $ 3.06 | ||
Description
General part information
NX33A0010 Series
100 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
