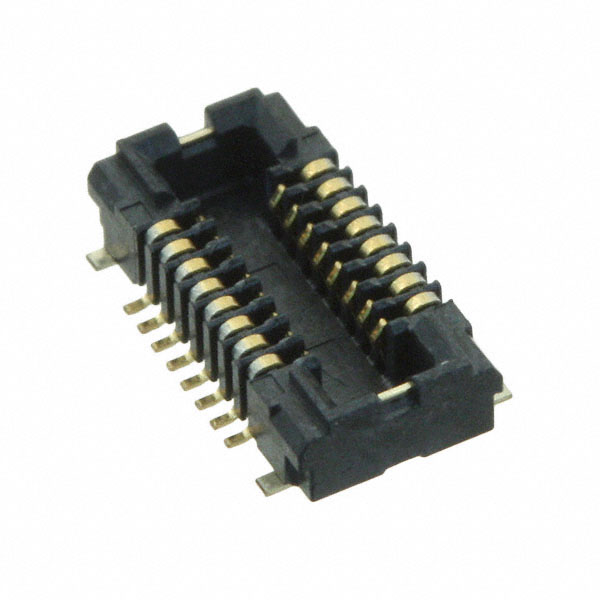

AXT316114

Active

Panasonic Electric Works

CONN SOCKET 16POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 16POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT316114

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	16
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mated Stacking Heights	Number of Positions	Number of Rows	Connector Type	Contact Finish	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Features	Mounting Type
Panasonic Electric Works AXT316154	1.5 mm	16	2	Outer Shroud Contacts Socket	Gold	0.016 in	0.4 mm	0.057 in	1.45 mm	Board Guide Solder Retention	Surface Mount
Panasonic Electric Works AXT316114	1.5 mm	16	2	Outer Shroud Contacts Socket	Gold	0.016 in	0.4 mm	0.057 in	1.45 mm	Board Guide Solder Retention	Surface Mount
Panasonic Electric Works AXT316124	1.5 mm	16	2	Outer Shroud Contacts Socket	Gold	0.016 in	0.4 mm	0.057 in	1.45 mm	Solder Retention	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 4.44

General part information

16 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
