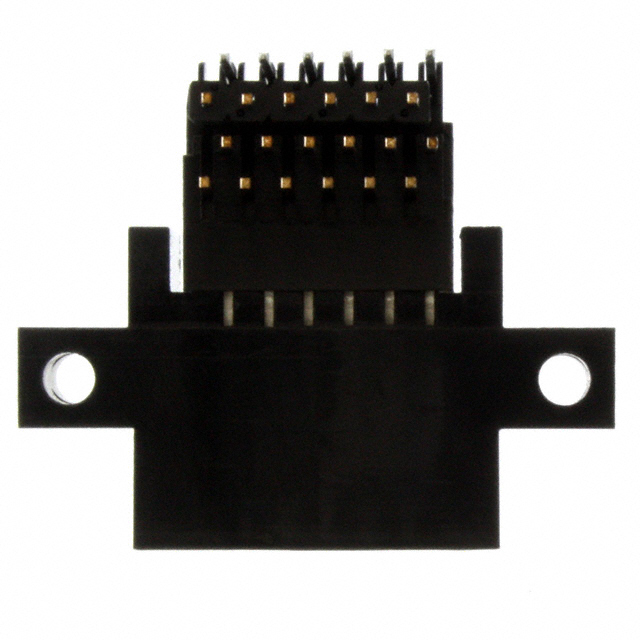

ACB24DKBS

Obsolete

Sullins Connector Solutions

CONN EDGE DUAL FMALE 48POS 0.100

ACB24DKBS

Obsolete

Sullins Connector Solutions

CONN EDGE DUAL FMALE 48POS 0.100

Description Specifications Series Pricing CAD Documents

Description

General part information

ACB24 Series

48 Position Female Connector Non Specified - Dual Edge, Bi-Level Gold 0.100" (2.54mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	ACB24DKBS

Card Thickness	0.062 in
Card Type	Bi-Level, Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Beryllium Copper
Contact Type	Cantilever
Features	High Density, Bi-Level
Flange Feature	Unthreaded, Side Mount Opening
Flange Feature Diameter	0.125 in
Gender	Female
Material - Insulation	PPS, Polyphenylene Sulfide
Mounting Type	Through Hole, Right Angle
Number of Positions	24 pos, 48
Number of Rows	2
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-65 °C
Pitch	0.1 in
Read Out	Dual
Termination	Solder

ACB24 Series

Part	Material - Insulation	Number of Rows	Read Out	Number of Positions	Pitch	Contact Material	Features	Card Thickness	Card Type	Color	Gender	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness	Mounting Type	Contact Finish	Termination	Flange Feature Diameter	Flange Feature	Flange Feature Opening Size
Sullins Connector Solutions ACB24DHHR	Polyphenylene Sulfide PPS	2	Dual	24 pos 48	0.05 in	Beryllium Copper	Board Lock	0.062 in	Dual Edge Non Specified	Black	Female	Hairpin Bellows	-65 °C	150 °C	30 µin	Through Hole	Gold	Solder Staggered
Sullins Connector Solutions ACB24DHFR	Polyphenylene Sulfide PPS	2	Dual	24 pos 48	0.05 in	Beryllium Copper	Board Lock	0.062 in	Dual Edge Non Specified	Black	Female	Hairpin Bellows	-65 °C	150 °C	30 µin	Surface Mount	Gold	Solder
Sullins Connector Solutions ACB24DYFR	Polyphenylene Sulfide PPS	2	Dual	24 pos 48	0.05 in	Beryllium Copper	Board Lock	0.062 in	Dual Edge Non Specified	Black	Female	Cantilever	-65 °C	150 °C	30 µin	Surface Mount	Gold	Solder
Sullins Connector Solutions ACB24DYRN-S1355	Polyphenylene Sulfide PPS	2	Dual	24 pos 48	0.05 in	Beryllium Copper	Card Extender	0.062 in	Dual Edge Non Specified	Black	Female	Cantilever	-65 °C	150 °C	30 µin	Board Edge Straddle Mount	Gold	Solder
Sullins Connector Solutions ACB24DKBS	Polyphenylene Sulfide PPS	2	Dual	24 pos 48	0.1 in	Beryllium Copper	Bi-Level High Density	0.062 in	Bi-Level Non Specified - Dual Edge	Black	Female	Cantilever	-65 °C	150 °C	30 µin	Right Angle Through Hole	Gold	Solder	0.125 in	Side Mount Opening Unthreaded
Sullins Connector Solutions ACB24DHHT	Polyphenylene Sulfide PPS	2	Dual	24 pos 48	0.05 in	Beryllium Copper		0.062 in	Dual Edge Non Specified	Black	Female	Hairpin Bellows	-65 °C	150 °C	30 µin	Through Hole	Gold	Solder Staggered		4-40 Flush Mount Threaded Insert Top Opening
Sullins Connector Solutions ACB24DYRQ	Polyphenylene Sulfide PPS	2	Dual	24 pos 48	0.05 in	Beryllium Copper	Card Extender	0.062 in	Dual Edge Non Specified	Black	Female	Cantilever	-65 °C	150 °C	30 µin	Board Edge Straddle Mount	Gold	Solder		Straddle Mount Opening Unthreaded	0.078 in
Sullins Connector Solutions ACB24DYHN-S1355	Polyphenylene Sulfide PPS	2	Dual	24 pos 48	0.05 in	Beryllium Copper		0.062 in	Dual Edge Non Specified	Black	Female	Cantilever	-65 °C	150 °C	30 µin	Through Hole	Gold	Solder Staggered
Sullins Connector Solutions ACB24DYHD	Polyphenylene Sulfide PPS	2	Dual	24 pos 48	0.05 in	Beryllium Copper		0.062 in	Dual Edge Non Specified	Black	Female	Cantilever	-65 °C	150 °C	30 µin	Through Hole	Gold	Solder Staggered	0.125 in	Flush Mount Top Opening Unthreaded
Sullins Connector Solutions ACB24DHHN	Polyphenylene Sulfide PPS	2	Dual	24 pos 48	0.05 in	Beryllium Copper		0.062 in	Dual Edge Non Specified	Black	Female	Hairpin Bellows	-65 °C	150 °C	30 µin	Through Hole	Gold	Solder Staggered

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ACB24DKBS | Datasheet
